856990 滤波器 - MICS 波段 SAW

The TriQuint 856990 is a high performance RF SAW filter with a center frequency of 403.5 MHz and a bandwidth of 3 MHz designed to provided front-end selectivity in the 402 to 405 MHz Medical Implant Communicaton Service (MICS) Band. It is ideal for short range wireless medical data applications where small size and low power consumption are required features.

技术特性

Usable bandwidth 3 MHz
Low loss
Balanced to Single Ended operation
No impedence matching required
Small size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically sealed
RoHS compliant (2002/95/EC), Pb-free

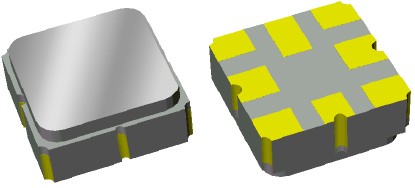

856990 产品实物图

应用领域 APPLICATION

Medical
MICS Band

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
403.5	3	2.1	BAL / SE	3 x 3 mm

订购信息 Ordering Information

856990

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856990 数据资料DataSheet下载：PDF	Rev.V2	2 页
