885007 ISM 带通滤波器
The TriQuint 885007 is a high-performance, high-power Bulk Acoustic Wave (BAW) bandpass filter with extremely steep skirts, simultaneously exhibiting low loss in the WiFi band and high near-in rejection in the 2.3 GHz and 2.6 GHz WiMAX / LTE / TD-LTE bands. The 885007 is specifically designed to enable coexistence of WiFi and WiMAX / LTE signals within the same device or in close proximity to one another. This part uses advanced and inexpensive packaging techniques to achieve an industry-leading 1.7 x 1.3 x 0.46 mm package. The filter exhibits excellent power handling capabilities. This part is referenced on multiple designs with the leading WiMAX chipset makers.
技术特性
- Low loss in 2400 - 2472 MHz band
- High rejection in 2496 - 2690 MHz bands: WiMAX / LTE / TD-LTE / Bands 7 & 38
- High Rejection in 2300-2380 MHz bands: WiMAX / WCS / WiBro / Band 40 / Indian 4G band
- Industry-leading small size: 1.7 x 1.3 x 0.46 mm
- +28 dBm (CW) power handling
- Performance over -30 to +85 ºC
- Single-ended operation
- Ceramic chip-scale package (CSP)
- Hermetically sealed
- RoHS compliant, lead-free

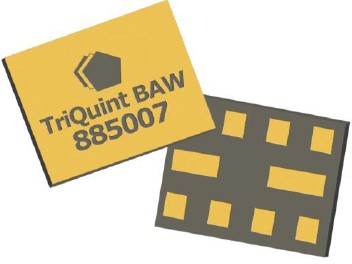

885007 产品实物图
|
应用领域 APPLICATION
- Handsets
- High Power WLAN Access Points
- Mobile Routers
- Portable Hotspots
- Smart Meters
技术指标
| 带宽(MHz) |
通带插入损耗 (dB) |
陷波频率抑制 (dB) |
封装 (mm) |
| 72 |
2 |
- |
1.3 x 1.7 |
订购信息 Ordering Information
| Part No. |
Description |
| 885007 |
packaged part |
| 885007-EVB |
evaluation board |

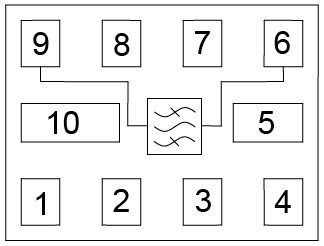

功能框图 Functional Block Diagram
|
