885010 ISM 陷波滤波器
The TriQuint 885010 is a high-performance Bulk Acoustic Wave (BAW) notch filter designed to reject emissions in the WiFi, Bluetooth, and ISM bands, while passing both the 2.3 GHz and 2.6 GHz WiMAX / LTE / TD-LTE bands. The 885010 is specifically designed to enable coexistence of WiFi / BT / ISM and 4G signals within the same device or in close proximity to one another. It is specified to support WiMAX requirements in the entire 2496 - 2690 MHz band and LTE Bands 7 and 38. The filter also passes the 2.3GHz band: WiBro, WCS, Band 40 and the Indian 4G band. This part uses advanced and inexpensive packaging techniques to achieve an industry-leading 1.7 x 1.3 x .46 mm package. The filter exhibits excellent power handling capabilities. This part is referenced on multiple designs with the leading WiMAX chipset makers.
技术特性
- Rejects entire 2.4 GHz WiFi / Bluetooth / ISM bands
- Low Loss in 2502-2690 MHz bands: WiMAX / LTE / TD-LTE / Bands 7 & 38
- Low Loss in 2300-2360 MHz bands: WiMAX / WCS / WiBro / Band 40 / Indian 4G band
- Industry-leading small size: 1.7 x 1.3 x .46 mm
- Power Handling: +28 dBm (avg), +37.5 dBm (peak)
- Performance -30 to +85 ºC
- Ceramic chip-scale Package (CSP)
- Hermetic RoHS compliant, lead-free

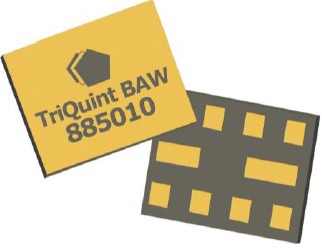

885010 产品实物图
|
应用领域 APPLICATION
- Handsets
- Mobile Routers
- Portable Hotspots
- Smart Meters
技术指标
| 带宽(MHz) |
通带插入损耗 (dB) |
陷波频率抑制 (dB) |
封装 (mm) |
| 82 |
- |
20 - 25 |
1.3 x 1.7 |
订购信息 Ordering Information
| Part No. |
Description |
| 885010 |
packaged part |
| 885010-EVB |
evaluation board |

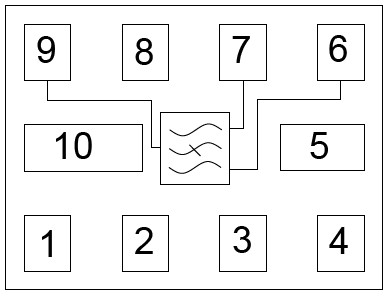

功能框图 Functional Block Diagram
|
