AP561-F 8 W 线性放大器
The TriQuint AP561-F is a high dynamic range broadband power amplifier in a surface mount package. The single-stage amplifier has 13 dB Gain while being able to achieve high performance for 0.7 to 2.9 GHz applications with up to +39 dBm of compressed 1dB power. The AP561-F uses a high reliability +12V InGaP / GaAs HBT process technology. The device incorporates proprietary bias circuitry to compensate for variations in linearity and current draw over temperature. The device does not require any negative bias voltage; an internal active bias allows the AP561-F to operate directly off a commonly used +12V supply and has the added feature of a +5V power down control pin. RoHS-compliant 5x6mm DFN package is surface mountable to allow for low manufacturing costs to the end user.
技术特性
- 0.7 to 2.9 GHz
- +39 dBm P1dB
- 13 dB gain @ 2.6 GHz
- 1.5% EVM @ 30 dBm Pout
- +12 V supply voltage
- Lead-free / green / RoHS compliant
- 5 x 6 mm power DFN package
技术指标
| 频率(GHz) |
增益(dB) |
P1dB (dBm) |
OIP3 (dBm) |
NF (dB) |
Vdd (V) |
Idd (mA) |
封装信息 |
| 0.7 - 2.9 |
15.8 |
39 |
50 |
5.3 |
12 |
300 |
5 x 6 mm |
订购信息 Ordering Information
| AP561-F |
0.7-2.9 GHz 12V 8W Power Amplifier |
| AP561-PCB900 |
869-894 MHz Evaluation Board |
| AP561-PCB2140 |
2110-2170 MHz Evaluation Board |
| AP561-PCB2500 |
2.5-2.7 GHz Evaluation Board |
|
应用领域 APPLICATION

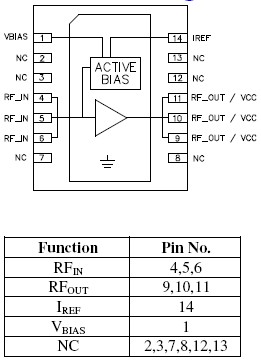

功能框图 Functional Block Diagram
|
