CV111-1AF 集成LO, RF, IF放大器的下变频器
The TriQuint CV111-1AF is a high linearity downconverter designed to meet the demanding issues for performance, functionality, and cost goals of current and next generation mobile infrastructure basestations. It provides high dynamic range performance in a low profile surface-mount leadless package that measures 6 x 6 mm square. Functionality includes RF amplification, frequency conversion and IF amplification while an integrated LO driver amplifier powers the passive mixer. The MCM is implemented with reliable and mature GaAs MESFET and InGaP HBT technology. Typical applications include frequency down conversion, modulation and demodulation for receivers used in CDMA / GSM / TDMA, CDMA2000, W-CDMA, GPRS, and EDGE 2.5G mobile infrastructure technologies for PCS / DCS frequency bands.
技术特性
- High dynamic range downconverter with integrated LO, IF & RF amplifiers
- RF: 1710 to 2000 MHz
- IF: 65 to 250 MHz
- +38 dBm Output IP3
- +21 dBm Output P1dB
- 5.3 dB noise figure
- +5V Single supply operation
- Lead-free 6mm 28-pin QFN package
- Low-side LO configuration
- Common footprint with other UMTS / cellular versions
技术指标
| RF(GHz) |
IF(GHz) |
LO(GHz) |
转换增益(dB) |
输出IP3(dBm) |
输出P1dB(dBm) |
NF(dB) |
偏压(V) |
电流(mA) |
封装 |
| 1.7 - 2 |
0.065 - 0.25 |
1.45 - 1.935 |
21 |
38 |
21 |
5.3 |
5 |
360 |
6x6 mm QFN28 |
|
应用领域 APPLICATION
订购信息 Ordering Information

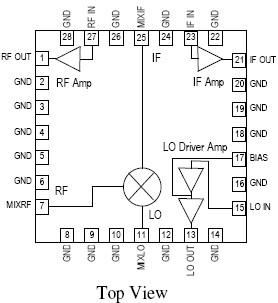

功能框图 Functional Block Diagram
|
