TAT6254B 低噪声, 高增益 FTTH / RFoG 放大器

The TriQuint TAT6254B FTTP SFU Video Receiver provides a low noise analog interface to CATV receivers and optical triplexers. The TAT6254B is intended for use in single family unit (SFU) analog video fiber to the premise (FTTP) applications. The TAT6254B exhibits low input noise and distortion that provides performance margin critical to meeting stringent FTTP link requirements, particularly those with all QAM channel loading. It runs on a single 12 volt supply, eliminating the need for an extra ONU power supply. The TAT6254B provides automatic gain control (AGC) to maintain a constant +14 dBmV/ch output to ensure consistent video quality and ease of design. The TAT6254B is fabricated using 6-inch GaAs pHEMT technology to optimize performance and cost. The TAT6254B is pin and functionally compatible with the TAT6254C, though it has significantly increased gain and lower noise for all or near-all QAM deployments.

技术特性
  • Pin compatible with the TAT6254C
  • Single 12 V configuration
  • Low Noise 3.0 pA/rtHz Equivalent Input Noise
  • 14 dBmV/channel RF output at 55.25 MHz
  • Both RF and Optical AGC designs available, continuously variable
  • Low power consumption, 1.2 Watts at 12 V
  • -12 to -2 dBm optical input range
  • Linearity better than –62 dBc CSO and –62 dBc CTB
订购信息 Ordering Information
TAT6254B 75Ω High linearity pHEMT amplifier(lead-free/RoHS compliant SOIC-8 Pkg)
TAT6254B-EB Amplifier evaluation board
功能框图 Functional Block Diagram

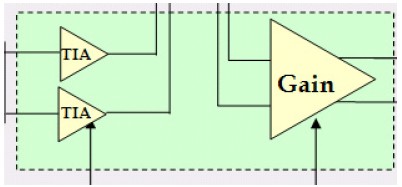

TAT6254B 功能框图

技术指标
频率 增益/AGC范围 CSO/CTB(80ch,24dbmV) EIN pA/rtHz 回波损耗 应用
50 - 1000 MHz 38 dB Gain -62 dBc / -62 dBc 3.0 pA / rtHz EIN 18 dB FTTH / RFoG
应用领域 APPLICATION
  • High dynamic range FTTH
  • RFoG (Radio Frequency over Glass) and GPON FTTH
  • Multi Dwelling Unit TIA
  • Mini-node
TAT6254B 产品实物图

TAT6254B 产品实物图



应用技术支持与电子电路设计开发资源下载 版本信息 大小
TAT6254B 数据资料DataSheet下载:pdf Rev.V2 2 页
