TAT6254C 光纤到户RF放大器, 50-1000MHz

The TriQuint TAT6254C FTTP SFU Video Receiver provides a low noise analog interface to CATV receivers and optical triplexers. The TAT6254C is intended for use in single family unit (SFU) analog video fiber to the premise (FTTP) applications. The TAT6254C exhibits low input noise and distortion that provides performance margin critical to meeting stringent FTTP link requirements. It runs on either a single 12 V or 5 V supply, eliminating the need for an extra ONU power supply. The TAT6254C provides automatic gain control (AGC) to maintain a constant +19 dBmV/ch output (+23 dBmV in high output mode) to ensure consistent video quality and ease of design. The TAT6254C is fabricated using 6-inch GaAs pHEMT technology to optimize performance and cost. The TAT6254C has the flexibility to be designed for a range of RF outputs and supply voltages. This datasheet discusses four configurations; standard RF output and high RF output with both 5V and 12V supplies.

技术特性

Single 12 V or 5 V configuration
Low Noise 3.9 pA/rtHz Equivalent Input Noise
19 or 23 dBmV/channel RF output, at 55.25MHz
33 dB AGC range, for -10 to +2 dBm optical inputs
Low power consumption, 1.3 Watts at 12 V and 1.0 Watt at 5 V
Potentially eliminates the need for costly balun and directional coupler
Linearity better than –63 dBc CSO and CTB

订购信息 Ordering Information

TAT6254C	CATV FTTH pHEMT amplifier
TAT6254C-EB	Evaluation Board

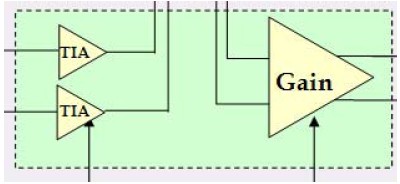

功能框图 Functional Block Diagram

技术指标

频率	增益/AGC范围	CSO/CTB(80ch,24dbmV)	EIN pA/rtHz	回波损耗	应用
50-1000MHz	33 dB/33 dB	63/70	3.9	18dB	FTTH, FTTB

应用领域 APPLICATION

High dynamic range FTTH
GPON FTTH
Multi Dwelling Unit TIA
Mini-node

TAT6254C 产品实物图

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TAT6254C 数据资料DataSheet下载:pdf	Rev.V2	2 页
