TGA1073G-SCC Ka 波段中等功率放大器
The TriQuint TGA1073G-SCC is a three stage MPA MMIC design using TriQuint’s proven 0.25 um Power pHEMT process. The TGA1073G-SCC is designed to support a variety of millimeter wave applications including point-to-point digital radio and point-to-multipoint communications. The three stage design consists of a 200 um input device driving a 480um interstage device followed by an 800um output device. The TGA1073G-SCC provides 25dBm nominal output power at 1dB compression across 19-27GHz. Typical small signal gain is 22 dB. The TGA1073G-SCC requires minimum off-chip components. Each device is 100% DC and RF tested on-wafer to ensure performance compliance. The device is available in chip form.
技术特性
- 0.25 um pHEMT Technology
- 22 dB Nominal Gain
- 25 dBm Nominal Pout @ P1dB
- Bias 5-7V @ 220 mA
- Chip Dimensions 2.55 mm x 1.15mm
应用领域 APPLICATION
- Point-to-Point Radio
- Point-to-Multipoint Communications
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 19 - 27 |
25 |
22 |
- |
5-7 |
220 |

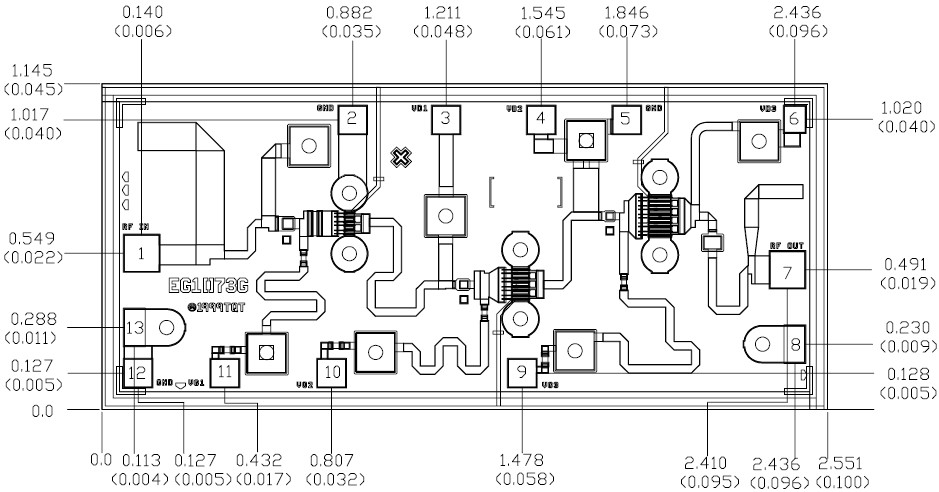

机械特性Mechanical Characteristics
 |
