TGA2501-TS 6-18 GHz 2.8 W 功率放大器

The TriQuint TGA2501-TS is a wideband power amplifier fabricated on TriQuint's production-released 0.25um power pHEMT process. Operating from 6 to 18 Ghz, it achieves 34.5 dBm of saturated output power, 25% efficiency and 24 dB of small signal gain. The TGA2501-TS is pre-assembled to a CuMo carrier (or thermal spreader) for improved thermal management and ease of handling. Using AuSn solder and a vacuum reflow process, attachment is made with minimal voiding and screened via x-ray to ensure acceptable attach. Fully matched to 50 Ohms, RoHS compliant and with integrated DC blocking caps on both I/O ports, the TGA2501-TS is ideally suited to support both commercial and defense related opportunities. The TGA2501-TS is 100% DC and RF tested on-wafer to ensure compliance to performance specifications.

技术特性
  • 34.5 dBm midband Pout
  • 24 dB nominal gain
  • 10 dB typical input return loss
  • 5 dB typical output return loss
  • Bias conditions: 8 V @ 1.2 A
  • 0.25 um Ku pHEMT 2MI
  • Thermal spreader dimensions: 4.445 x 3.023 mm
订购信息 Ordering Information
  • TGA2501-TS
应用领域 APPLICATION
  • Electronic Counter-Countermeasures (ECCM)
  • X and Ku Band Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
6 - 18 34.5 24 25% 8 1200

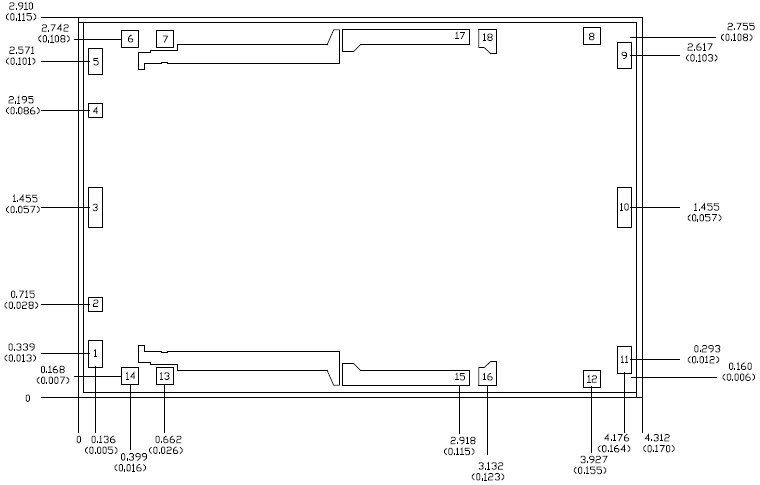

机械图样Mechanical Drawing
TGA2501-TS 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2501-TS:S 参数
TGA2501-TS 数据资料DataSheet下载:PDF Rev.V2 2 页
