技术特性

• 34.5 dBm midband Pout
• 24 dB nominal gain
• 10 dB typical input return loss
• 5 dB typical output return loss
• Bias conditions: 8 V @ 1.2 A
• 0.25 um Ku pHEMT 2MI
• Chip dimensions: 4.3 x 2.9 x 0.1 mm (170 x 115 x 4 mils)

应用领域 APPLICATION

• Electronic Counter-Countermeasures (ECCM)
• X and Ku Band Point-to-Point Radio

订购信息 Ordering Information

• TGA2501

技术指标

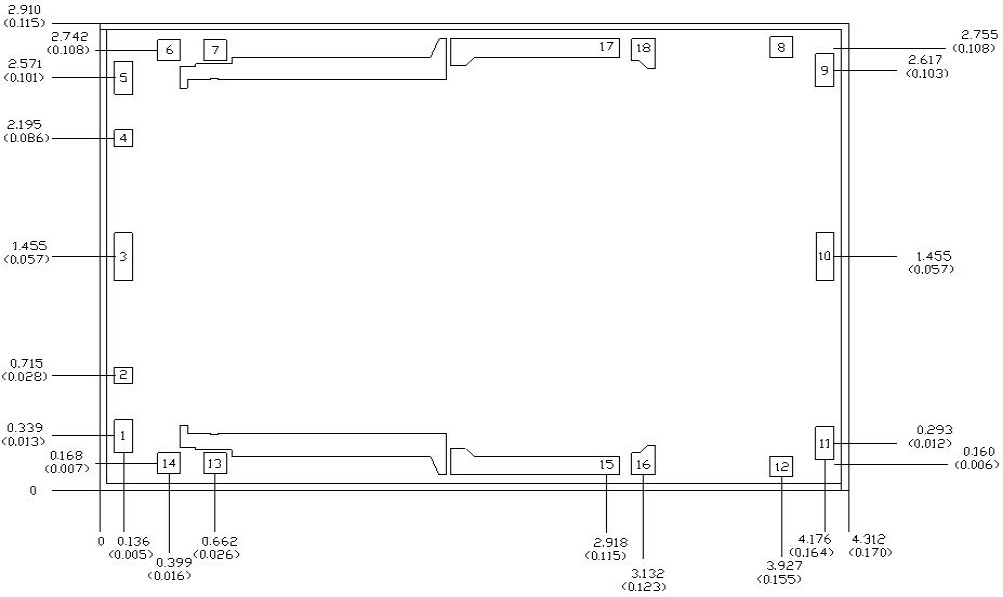

机械图样Mechanical Drawing
