技术特性

• 12 to 18 GHz bandwidth
• 28 dB nominal gain
• 20 dBm P1dB
• Bias: 5, 6, 7 V, 80 ± 10% mA self-bias
• 0.5 um 3MI mmW pHEMT technology
• Chip dimensions: 1.80 x 0.83 x 0.1 mm (0.071 x 0.031 x 0.004 in)

订购信息 Ordering Information

• TGA2507

应用领域 APPLICATION

• Ku Band Space
• Military Ku Band
• Point-to-Point Radio
• VSAT

技术指标

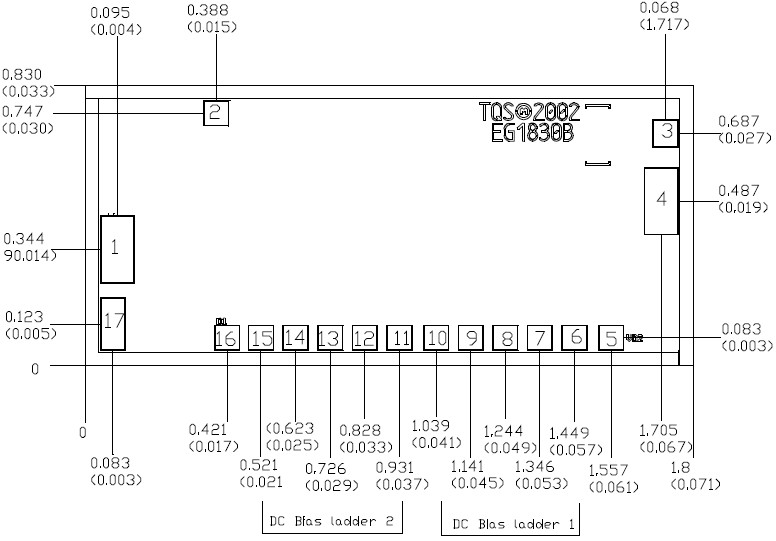

机械图样Mechanical Drawing
