TGA2508-SCC Ku 波段高功率放大器
The TriQuint TGA2508 is a compact Medium Power Amplifier MMIC for VSAT applications. The part is designed using TriQuint’s 0.5 um power pHEMT production process. The TGA2508 provides a nominal 30 dB Gain from 12-19 GHz, with Output Power @ 1dB Gain compression of 30 dBm. The MMIC also provides 32 dBm Output TOI @ Pin/Tone = -10 dBm. The part is ideally suited for low cost emerging markets such as VSAT Ground Terminals, Point- to-Point Radio, Military Ku Band applications. The TGA2508 is 100% DC and RF tested on- wafer to ensure performance compliance. Evaluation boards are available.
技术特性
- Frequency range: 12 to 19 GHz
- 30 dB nominal gain
- 30 dBm nominal P1dB @ 15 GHz
- 32 dBm nominal OTOI
- Bias conditions: 7 V, 433 mA
- 0.50 um 3MI pHEMT technology
- Chip dimensions: 2.1 x 1.1 x 0.1 mm (0.083 x 0.118 x 0.004 in)
应用领域 APPLICATION
- Military Ku Band
- Point-to-Point Radio
- VSAT Ground Terminals
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 12 to 19 |
30 |
30 |
- |
7 |
433 |
订购信息 Ordering Information

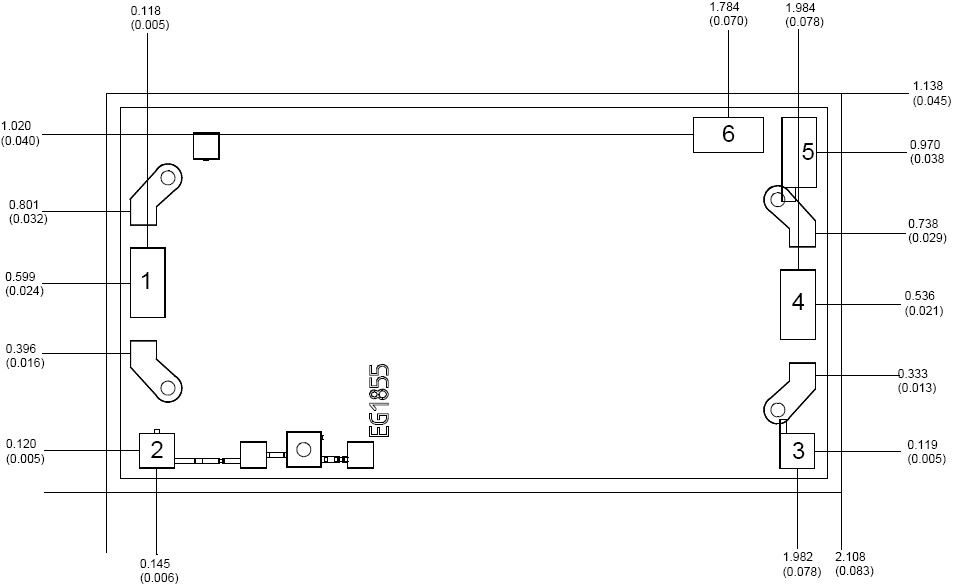

机械图样Mechanical Drawing
 |
