TGA2509-FL 宽带封装高功率放大器，AGC
The TriQuint TGA2509-FL is a wideband high power amplifier with 25 dB AGC range. The HPA operates from 2 - 20 GHz and is designed using TriQuint's power pHEMT production process. The TGA2509-FL provides typical 29 dBm of output power at 1 dB gain compression with small signal gain of 15 dB. The TGA2509-FL is suitable for a variety of wideband electronic warfare systems such as radar warning receivers, electronic counter measures, decoys, jammers and phased array systems. The flange lead package has a high thermal conductivity copper alloy base. Evaluation boards are available.
技术特性
- Frequency range: 2 to 20 GHz
- > 29 dBm nominal P1dB
- 15 dB nominal gain, midband
- 25dB AGC range
- 10 lead flange package style
- Bias conditions: Vd = 12 V, Idq = 1.1 A
- Package dimensions: 0.7 x 0.3 x 0.1 in.
应用领域 APPLICATION
- Electronic Countermeasures (ECM)
- Electronic Warfare
- Military
- Test Equipment
- VSAT and Digital Radio
- Wideband Power Amplifiers
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 2-20 |
29 |
15 |
- |
12 |
1100 |
订购信息 Ordering Information

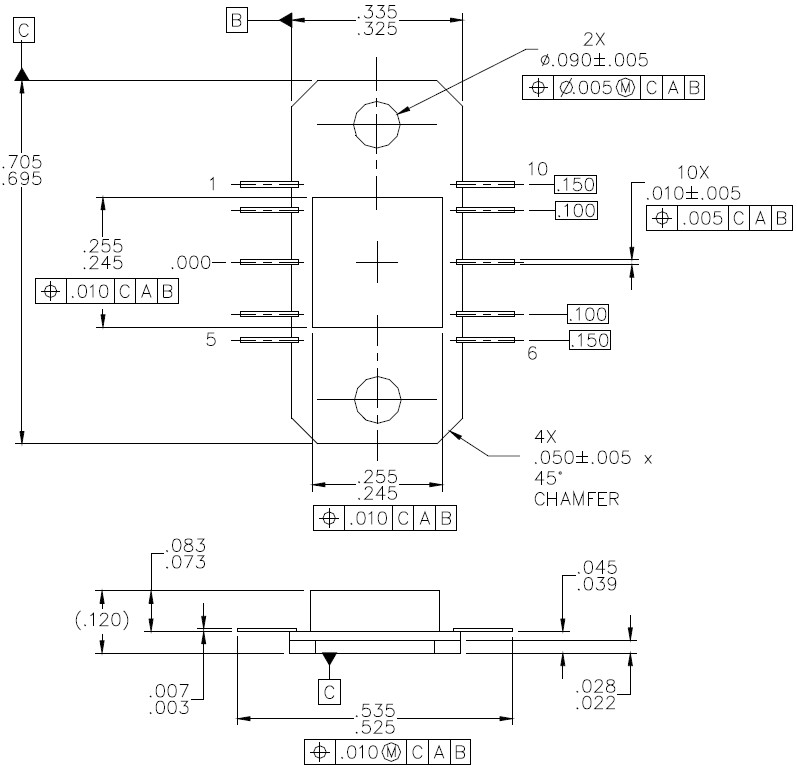

封装尺寸图Package Dimensional Drawing
 |
