TGA2509 宽带1W 高功率放大器，AGC
The TriQuint TGA2509 is a compact wideband high power amplifier with AGC. The HPA operates from 2 - 22 GHz and is designed using TriQuint's proven standard 0.25 um gate pHEMT production process. The part provides greater than 28.5 dBm of output power at 1 dB gain compression with small signal gain of 17 dB. Typical saturated power is 30 dBm from 2 - 16 GHz. The TGA2509 is suitable for a variety of wideband electronic warfare systems such as radar warning receivers, electronic counter measures, decoys, jammers and phased array systems. The TGA2509 is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.
技术特性
- Frequency range: 2 to 22 GHz
- 30 dBm nominal Psat (2 to 16 GHz)
- > 29 dBm nominal Psat (2 to 20 GHz)
- > 28.5 dBm Output P1dB
- 17 dB nominal gain
- > 25 dB AGC Range
- 0.25 um 3MI pHEMT technology
- Nominal bias 12 V @ 1.1 A
- Chip dimensions: 2.30 x 3.20 x 0.10 mm (0.091 x 0.126 x 0.004 in)
应用领域 APPLICATION
- Electronic Countermeasures (ECM)
- Electronic Warfare
- Military
- Test Equipment
- Wideband Gain Blocks
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 2-22 |
30 |
17 |
- |
1 |
1100 |
订购信息 Ordering Information

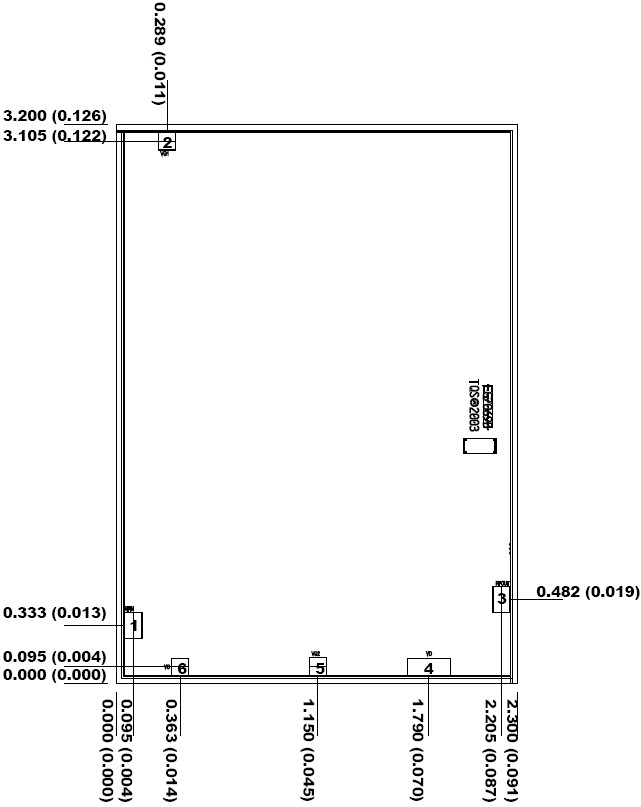

机械图样Mechanical Drawing
 |
