TGA2514-FL 6.5 WKu 波段功率放大器

The TGA2514-FL is a power amplifier that provides 24 dB of gain and 6.5 W of output power across 13 - 16 GHz. The TGA2514-FL is designed using TriQuint's proven standard 0.25 um gate pHEMT production process. This device is ideally suited for VSAT transmitter and point-to-point radio applications. The flange lead package has a high thermal conductivity copper alloy base. The part is lead-free and RoHS compliant. Evaluation boards are available.

技术特性
  • Frequency range: 13 to 16 GHz
  • 38 dBm nominal Psat
  • 24 dB nominal gain
  • 14 dB nominal return loss
  • 0.25-um pHEMT 3MI technology
  • 10 lead flange package
  • Bias conditions: 8 V @ 2.6 A Idq
  • Package dimensions: 0.45 x 0.68 x 0.12 in.
应用领域 APPLICATION
  • Ku Band VSAT Transmitters
  • Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
13-16 38 24 - 8 2600
订购信息 Ordering Information
  • TGA2514-FL
机械图样Mechanical Drawing

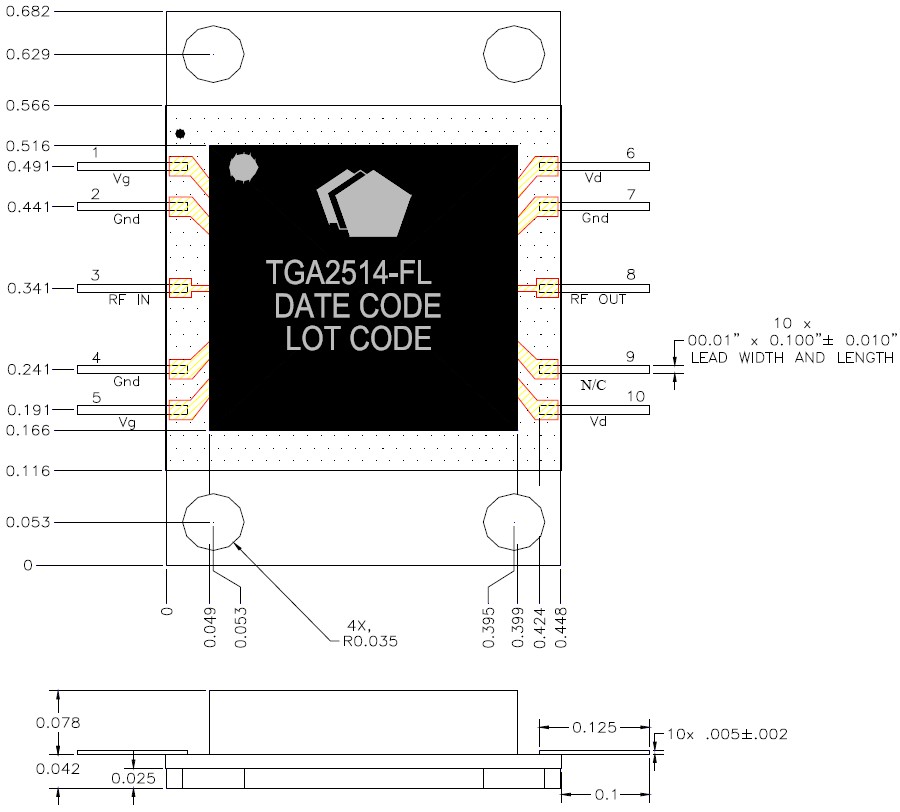

TGA2514-FL 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA2514-FL材料清单
TGA2514-FL布局文件
TGA2514-FL 数据资料DataSheet下载:PDF Rev.V2 2 页
