TGA2520 12-16 GHz 高线性放大器
The TriQuint TGA2520 MMIC is an extremely linear, high gain amplifier, capable of 1 Watt output power at P1dB for the frequency range of 12 - 16 GHz. This performance makes this amplifier ideally suited for point-to-point radios and current Ku band satellite ground terminal applications. The TGA2520 utilizes TriQuint's robust 0.5 um power pHEMT process coupled with 3 layer Metal Inteconnect (3MI) technology. The TGA2520 provides the high power transmit function in an extremely compact (less than 3.5 mm²) chip footprint. The combination of a high-yield process, electrical performance and compact die size is exactly what is required to support the aggressive pricing targets required for low-cost transmit modules. Each device is 100% DC and RF tested on-wafer to ensure performance compliance.
技术特性
- 31 dBm midband Pout
- 33 dB nominal gain
- TOI > 40 dBm
- 0.5 um pHEMT 3MI technology
- Bias conditions: 6 V, 850mA
- Chip dimensions: 2.5 x 1.4 x 0.1 mm (98 x 55 x 4 mils)
订购信息 Ordering Information
应用领域 APPLICATION
- Ku Band Satellite Communications (Satcom)
- Point-to-Point Radio
- VSAT
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 12 - 16 |
31 |
33 |
- |
6 |
850 |

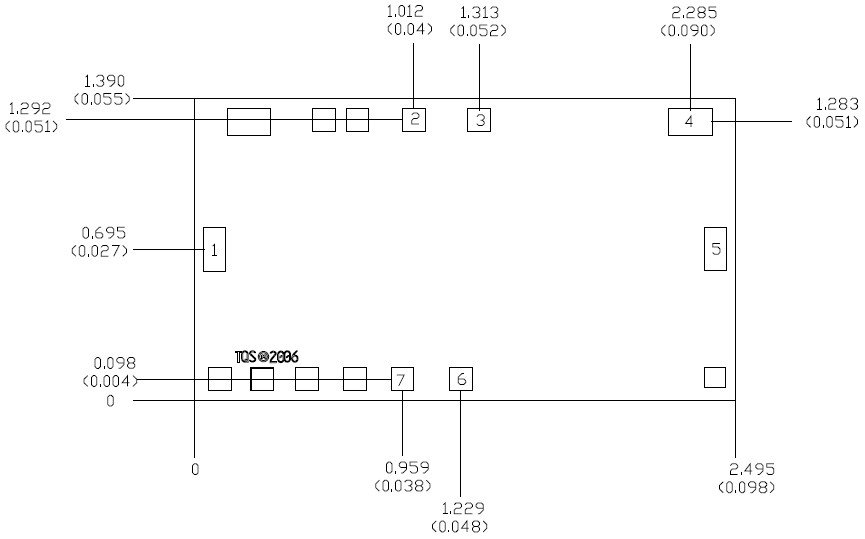

机械图样Mechanical Drawing
 |
