TGA4036 19-38 GHz 中功率放大器
The TriQuint TGA4036 is a compact medium power amplifier MMIC for wide band applications. The part is designed using TriQuint's proven standard 0.25 um power pHEMT production process. The part provides a nominal 20 dB gain from 19 - 36 GHz, with saturated output power of 22 dBm. The part is ideally suited for low cost emerging markets such as point-to-point radio, point-to-multipoint communications and instrumentation. The TGA4036 is 100% DC and RF tested on-wafer to ensure performance compliance. Evaluation boards are available upon request.
技术特性
- Frequency range: 19 to 38 GHz
- 20 dB nominal gain
- 22 dBm nominal Psat
- 30 dBm nominal TOI
- Bias: 5 V, 160 mA (210 mA @ P1dB)
- 0.25 um 3MI pHEMT technology
- Chip dimensions: 1.69 x 0.75 x 0.10 mm (0.066 x 0.030 x 0.004 in)
订购信息 Ordering Information
应用领域 APPLICATION
- Instrumentation
- Point-to-Multipoint Radio
- Point-to-Point Radio
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 19-38 |
22 |
20 |
- |
5 |
160 |

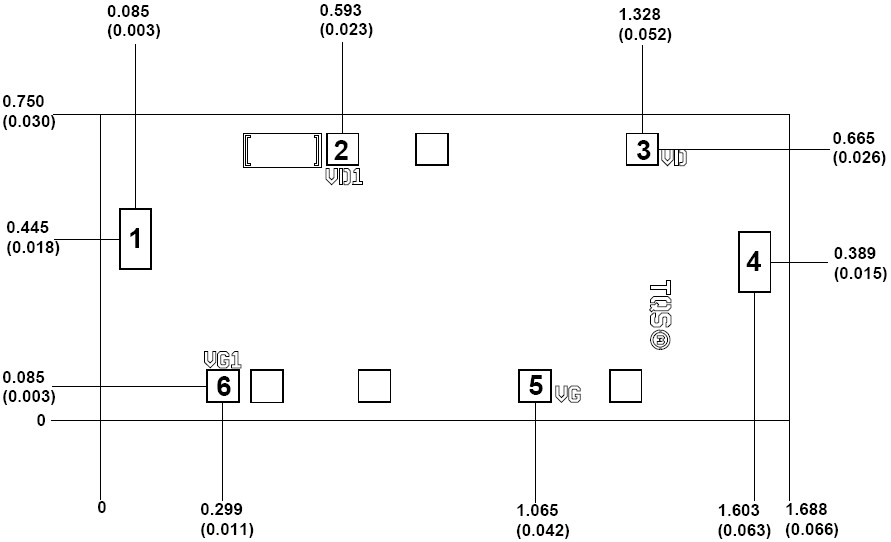

机械图样Mechanical Drawing
 |
