TGA4043 Q 波段功率放大器
The TriQuint TGA4043 is a compact high power amplifier MMIC for Q band applications. The part is designed using TriQuint's proven standard 0.25 um gate power pHEMT production process. The TGA4043 provides a nominal 28 dBm of output power at 1 dB gain compression from 40 to 45 GHz with a small signal gain of 10 dB. The part is ideally suited for low cost emerging markets such as point-to-point radio and point-to-multipoint communications. The TGA4043 is 100% DC and RF tested on-wafer to ensure performance compliance.
技术特性
- Frequency range: 40 to 45 GHz
- 29 dBm nominal Pout @ P1dB
- 10 dB nominal gain
- 0.25 um pHEMT technology
- Bias: 7 V @ 500 mA
- Chip dimensions: 3.08 mm x 3.14 x 0.10 mm (0.121 x 0.124 x 0.004in)
应用领域 APPLICATION
- Military
- Point-to-Multipoint Radio
- Point-to-Point Radio
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 40-45 |
29 |
10 |
- |
7 |
500 |

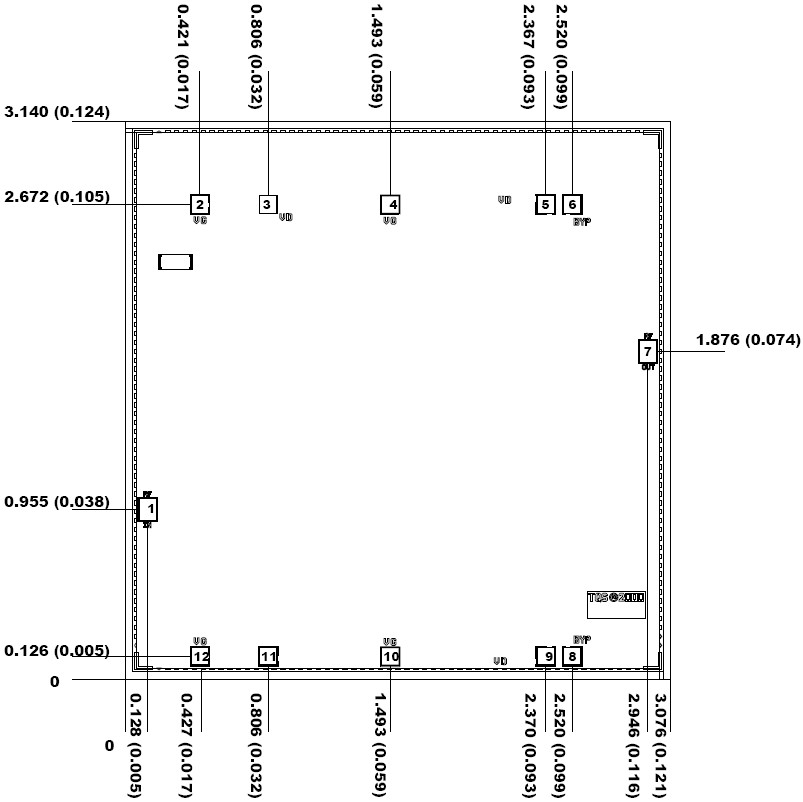

机械图样Mechanical Drawing
 |
