TGA4502-SCC Ka 波段HPA
The TriQuint TGA4502-SCC is a compact high power amplifier MMIC for K band applications. The part is designed using TriQuint's proven standard 0.25 um gate power pHEMT production process. The TGA4502-SCC provides a nominal 29 dBm of output power at 1 dB gain compression from 17 to 27 GHz with a small signal gain of 22 dB. The part is ideally suited for low cost emerging markets such as K band satellite communications, point-to-point radio, and point-to-multipoint communications. The TGA4502-SCC is 100% DC and RF tested on-wafer to ensure performance compliance.
技术特性
- 17 to 27 GHz application frequency range
- 22 dB nominal gain
- 29 dBm nominal P1dB
- 37 dBm nominal OTOI
- 15 dB nominal return loss
- 0.25 um pHEMT 2MI Technology
- Bias 7 V @ 760 mA
- Chip dimensions: 1.52 x 3.29 x 0.1 mm
应用领域 APPLICATION
- K Band Satellite Communications (Satcom)
- Point-to-Multipoint Radio
- Point-to-Point Radio
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 17-27 |
29 |
22 |
- |
7 |
750 |
订购信息 Ordering Information

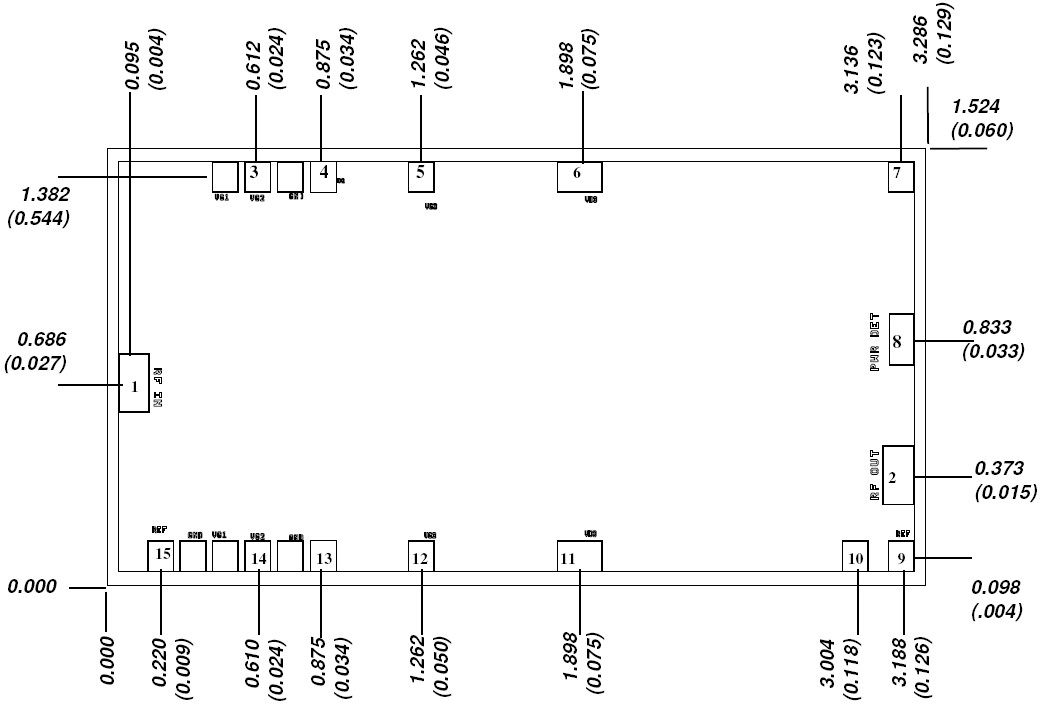

机械图样Mechanical Drawing
 |
