技术特性

• Typical frequency range: 20 to 27 GHz
• 21 dB nominal gain
• 2.2 dB nominal noise figure
• 12 dBm nominal P1dB
• Bias: 3.5 V, 60 mA
• 0.15 um 3MI pHEMT technology
• Chip dimensions: 1.2 x 0.8 x 0.1 mm (0.047 x 0.031 x 0.004 in)

应用领域 APPLICATION

• LMDS
• Point-to-Multipoint Radio
• Point-to-Point Radio

技术指标

订购信息 Ordering Information

• TGA4506

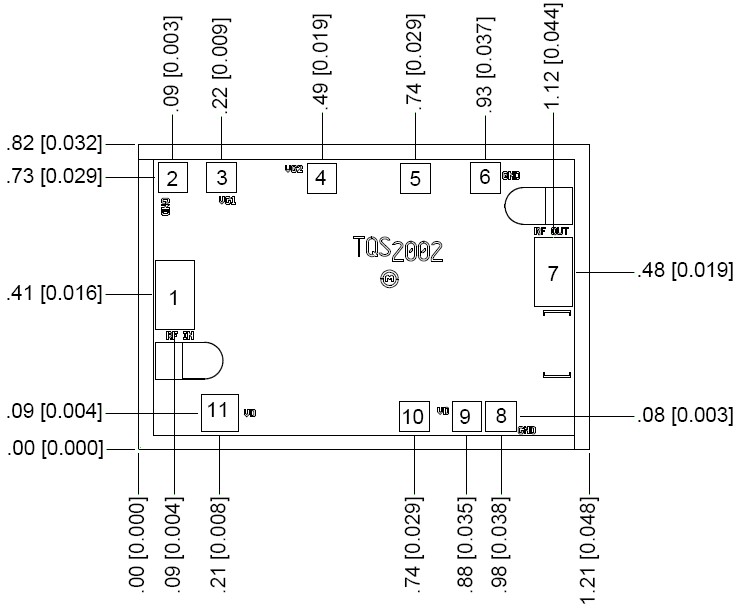

机械图样Mechanical Drawing
