TGA4509-SM 1W Ka 波段封装功率放大器

The TriQuint TGA4509-SM is a Ka band packaged 1 Watt power amplifier. The TGA4509-SM operates from 28 to 31 GHz and is designed using TriQuint's power pHEMT production process. The TGA4509-SM typically provides 30 dBm of output power at 1 dB gain compression with small signal gain of 22 dB. The TGA4509-SM is available in a low-cost, surface mount 4 x 4 QFN style package and is ideally suited for Ka band VSAT ground terminal, point-to-point radio and point-to-multipoint applications. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性
  • 22 dB nominal gain @ 30 GHz
  • 30 dBm nominal Pout @ P1dB
  • 25% PAE @ P1dB
  • -10 dB nominal return loss
  • Built-in power detector
  • 0.25-um mmW pHEMT 3MI
  • Bias conditions: Vd = 4 - 6 V, Idq = 420 mA
  • Chip dimensions: 2.44 x 1.15 x 0.1 mm (0.096 x 0.045 x 0.004 in)
应用领域 APPLICATION
  • LMDS
  • Point-to-Multipoint Radio
  • Point-to-Point Radio
  • Satellite Ground Terminals
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
27-31 30 22 - 6 420
订购信息 Ordering Information
  • TGA4509-SM

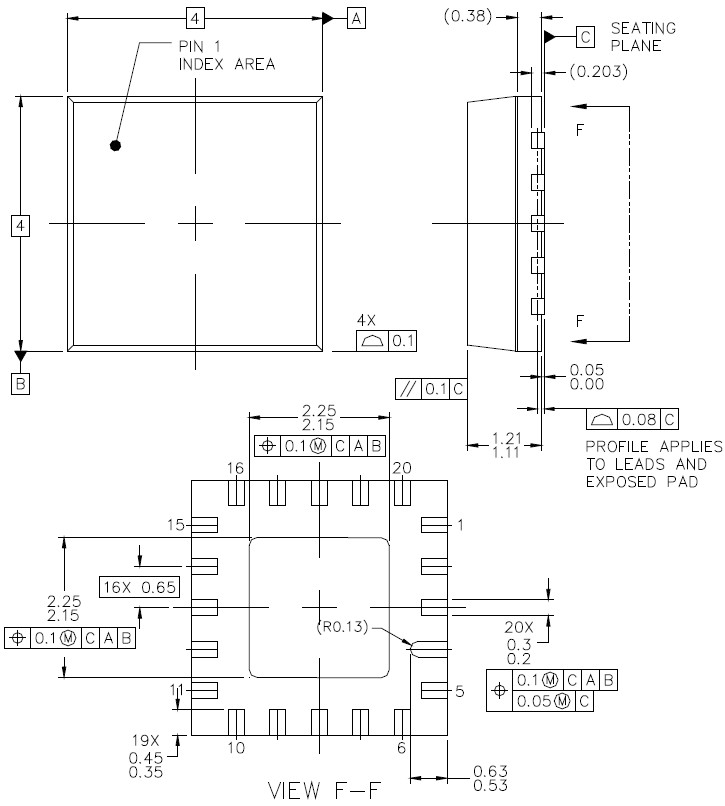

机械图样Mechanical Drawing
TGA4509-SM 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4509-SM:S 参数
TGA4509-SM材料清单
TGA4509-SM布局文件
TGA4509-SM 数据资料DataSheet下载:PDF Rev.V2 2 页
