TGA4510 29 - 37 GHz 驱动放大器

The TriQuint TGA4510 is a Ka band packaged 1 Watt power amplifier. The TGA4510 operates from 28 to 31 GHz and is designed using TriQuint's power pHEMT production process. The TGA4510 typically provides 30 dBm of output power at 1 dB gain compression with small signal gain of 22 dB. The TGA4510 is available in a low-cost, surface mount 4 x 4 QFN style package and is ideally suited for Ka band VSAT ground terminal, point-to-point radio and point-to-multipoint applications. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性
  • 0.25 um pHEMT technology
  • > 16 dB nominal gain @ 30 GHz
  • 16 dBm nominal Psat
  • Bias conditions: Vd = 6 V, Id = 60 mA
  • Compact chip size: 1.1 x 0.8 x 0.1 mm
订购信息 Ordering Information
  • TGA4510
应用领域 APPLICATION
  • Base Stations
  • LMDS
  • Point-to-Point Radio
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
29-37 16 16 - 6 60

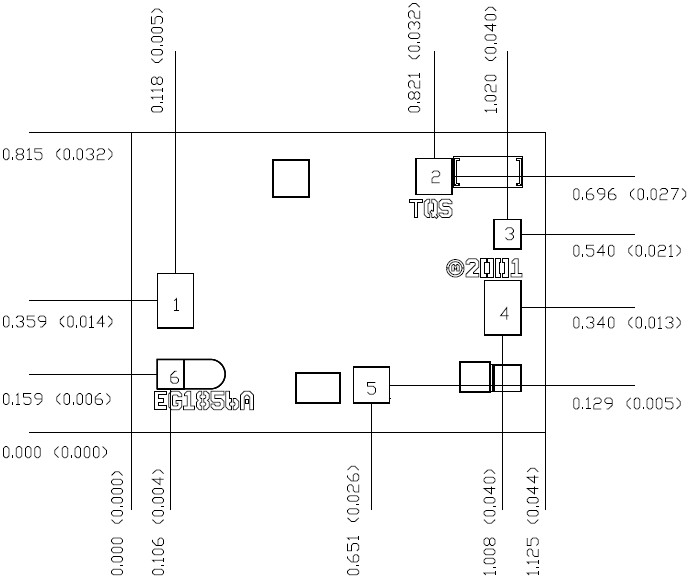

机械图样Mechanical Drawing
TGA4510 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4510:S 参数
TGA4510 数据资料DataSheet下载:PDF Rev.V2 2 页
