TGA4512-SM Ka 波段驱动放大器

The TriQuint TGA4512-SM is a Ka band packaged driver amplifier. The TGA4512-SM operates from 28 to 32 GHz and is designed using TriQuint's power pHEMT production process. The part typically provides 17 dBm of saturated output power with small signal gain of 14.5 dB. The TGA4512-SM is available in a low-cost, surface mount 12 lead 3x3 QFN package and is ideally suited for Ka band VSAT ground terminal and point-to-point radio applications. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性
  • Frequency range: 28 to 32 GHz
  • Power: 17 dBm Psat, 16 dBm P1dB
  • Gain: 14.5 dB
  • TOI: 24 dBm
  • NF: 7.5 dB
  • Bias: Vd = 6 V, Id = 80 mA, Vg = -0.45 V typical
  • Package dimensions: 3.0 x 3.0 x 0.85 mm
订购信息 Ordering Information
  • TGA4512-SM
TGA4512-SM 产品实物图

TGA4512-SM 产品实物图

技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
28-32 17 14.5 7.5 6 80
应用领域 APPLICATION
  • Ka Band VSAT Ground Terminals
  • Point-to-Point Radio

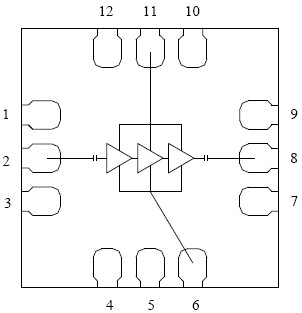

功能框图 Functional Block Diagram

TGA4512-SM 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4512-SM:S 参数
TGA4512-SM材料清单
TGA4512-SM布局文件
TGA4512-SM 数据资料DataSheet下载:PDF Rev.V2 2 页
