TGA4514 Ka 波段高功率放大器
The TriQuint TGA4514 is power amplifier for Ka band applications. The part is designed using TriQuint's proven standard 0.25 um gate power pHEMT production process. The TGA4514 provides a nominal 33.5 dBm of output power at an input power level of 20 dBm with a small signal gain of 18 dB. Nominal IMD3 is 31 dBc at Pout/tone of 22 dBm. The part is ideally suited for low cost markets such as point-to-point radio and Ka band satellite communications.
技术特性
- Typical frequency range: 31 to 35 GHz
- 33.5 dBm nominal Psat @ Vd = 7 V
- 31.5 dBm nominal P1dB
- IMD3: 31 dBc at Pout/tone = 22 dBm
- 18 dB nominal gain
- Bias 6 to 7 V, 1150 mA
- 0.25 um 2MI pHEMT technology
- Chip dimensions: 4.0 x 3.2 x 0.1 mm (0.161 x 0.128 x 0.004 in)
应用领域 APPLICATION
- Ka Band Satellite Communications (Satcom)
- Military Radar Systems
- Point-to-Point Radio
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 31-35 |
33.5 |
19 |
- |
6-7 |
1150 |
订购信息 Ordering Information
| Part |
Package Style |
| TGA4514 |
GaAsMMIC Die |

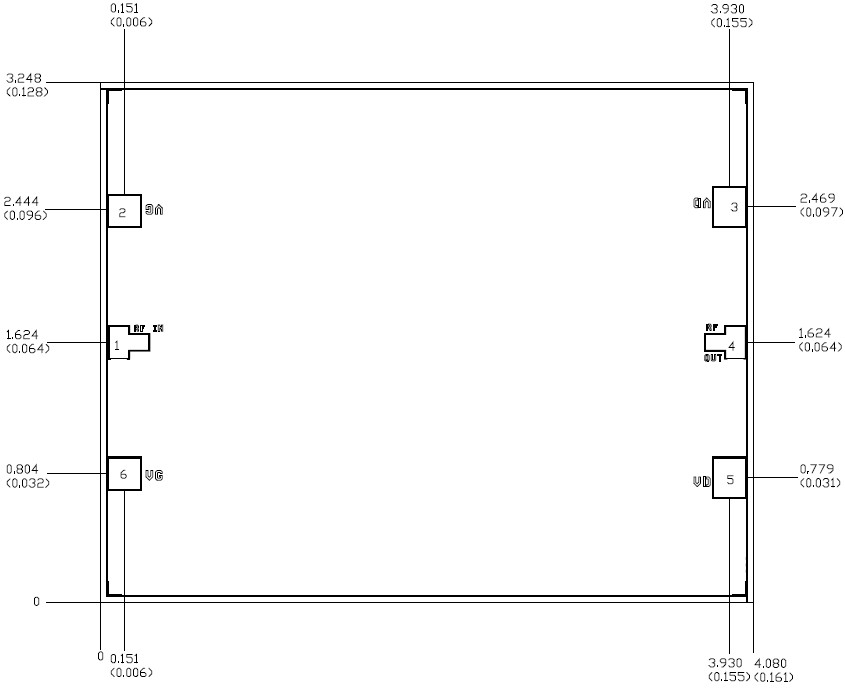

机械图样Mechanical Drawing
 |
