TGA4517 Ka 波段功率放大器

The TriQuint TGA4517 is a compact high power amplifier MMIC for Ka band applications. The part is designed using TriQuint's 0.15um gate power pHEMT process. The TGA4517 nominally provides 35 dBm of saturated output power and 20dB small signal gain at a mid-band of 31 to 37 GHz. The MMIC also provides 12 dB return loss. The part is ideally suited for markets such as point-to-point radio, military radar systems and Ka band satellite communications (both commercial and military). The TGA4517 is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.

技术特性
  • Frequency range: 31 to 37 GHz
  • 35 dBm nominal Psat @ mid-band
  • 20 dB nominal gain @ mid-band
  • 12 dB nominal return loss
  • Bias 5 to 6 V, 2 A quiescent
  • 0.15 um 3MI pHEMT technology
  • Chip dimensions: 4.35 x 3.90 x 0.05 mm (0.171 x 0.154 x 0.002 in)
应用领域 APPLICATION
  • Ka Band Satellite Communications (Satcom)
  • Military Radar Systems
  • Point-to-Point Radio
订购信息 Ordering Information
  • TGA4517
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
31-37 35 15 - 6 2000

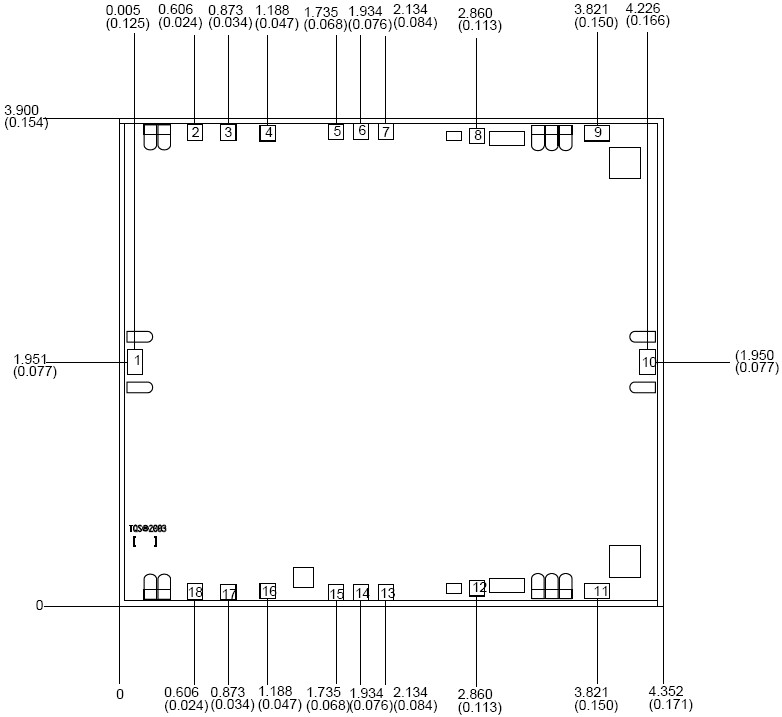

机械图样Mechanical Drawing
TGA4517 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4517:S 参数
TGA4517 数据资料DataSheet下载:PDF Rev.V2 2 页
