TGA4525-SM K 波段封装功率放大器
The TriQuint TGA4525-SM is a packaged high power amplifier for K band applications. The part is designed using TriQuint's power pHEMT production process. The TGA4525-SM provides a nominal 29 dBm output power at 1 dB gain compression with a small signal gain of 22 dB. The part is ideally suited for low cost emerging markets such as K band satellite communications, point-to-point and point-to-multipoint communications. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.
技术特性
- 17 to 27 GHz bandwidth
- 22 dB typical gain
- 37 dBm typical OTOI
- 29 dBm typical P1dB
- Vd = 7 V, Id= 760 mA (Id = 830 mA @ P1dB)
- Package dimensions: 5.0 x 5.0 x 1.10 mm
应用领域 APPLICATION
- K Band Satellite Communications (Satcom)
- Point-to-Multipoint Radio
- Point-to-Point Radio

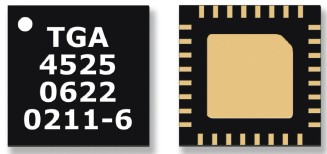

TGA4525-SM 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 17-27 |
29 |
22 |
- |
7 |
760 |
订购信息 Ordering Information

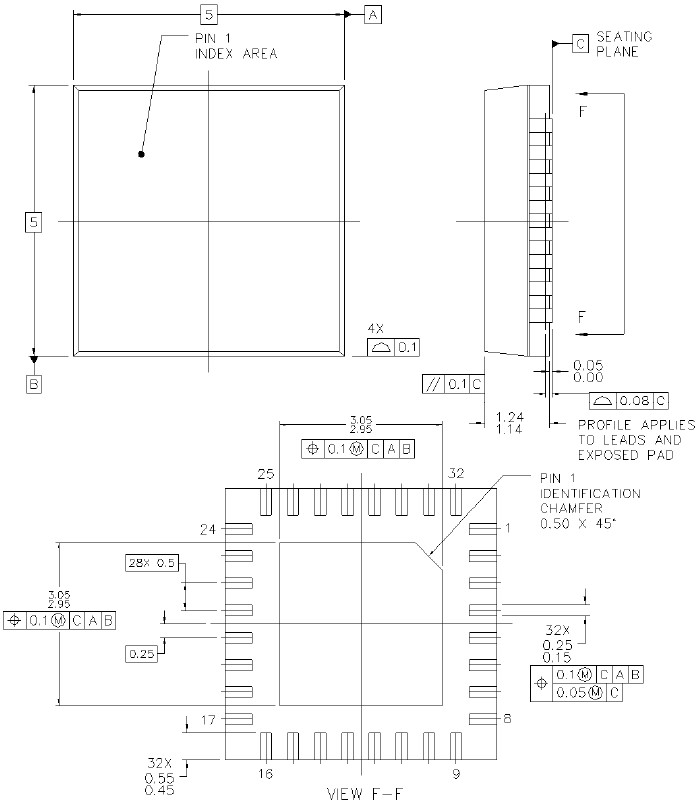

机械图样Mechanical Drawing
 |
