TGA4531 K-波段高线性功率放大器
The TriQuint TGA4531 is high linearity power amplifier for K band applications. The part is designed using TriQuint's proven standard 0.25 um gate Power pHEMT production process. The TGA4531 provides a nominal 32 dBm of output power at an input power level of 15 dBm with a small signal gain of 23 dB. Nominal TOI is 40 dBm and noise figure is 6 dB. The part is ideally suited for low cost emerging markets such as point-to-point radio, and K band satellite communications
技术特性
- Frequency range: 17 to 24 GHz
- Power: 32 dBm Psat, 31 dBm P1dB
- Gain: 23 dB
- TOI: 40 dBm
- NF: 6 dB
- Return loss: -15 dB
- Bias: Vd = 7 V, Id = 720 mA, Vg = -0.65 V typical
- Technology: 3MI 0.25 um mmw Power pHEMT
- Chip dimensions: 2.51 x 1.45 x 0.1 mm
订购信息 Ordering Information
| Part |
Package Style |
| TGA4531 |
GaAsMMIC Die |
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 17 - 24 |
32dBm |
23dB |
6 |
7 |
720 |
应用领域 APPLICATION
- Point-to-Point Radio
- K-Band Sat-Com

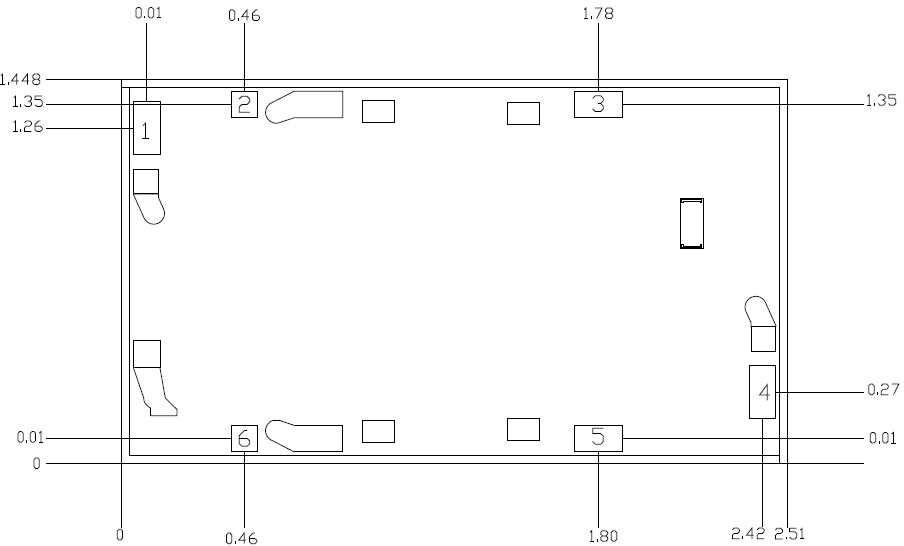

机械图样Mechanical Drawing
 |
