TGA4538 37 - 40 GHz 功率放大器

The TriQuint TGA4538 is high linearity power amplifier for K band applications. The part is designed using TriQuint's proven standard 0.25 um gate Power pHEMT production process. The TGA4538 provides a nominal 32 dBm of output power at an input power level of 15 dBm with a small signal gain of 23 dB. Nominal TOI is 40 dBm and noise figure is 6 dB. The part is ideally suited for low and satellite communications

技术特性
  • Frequency range: 37 to 40 GHz
  • OTOI: 37 dBm
  • Small signal gain: 24 dB
  • 29.5 dBm Psat, 28 dBm P1dB @ 5V, 600mA
  • 30.5 dBm Psat, 29.5 dBm P1dB @ 6V, 600mA
  • Chip dimensions: 2.30 x 1.66 x 0.10 mm
应用领域 APPLICATION
  • Millimeter Wave Communications
  • Point-to-Point Radio
Ordering Information
Part ECCN Package Style
TGA4538 3A001.b.2.e GaAsMMIC Die
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
37 - 40 29.5 24 - 5 600

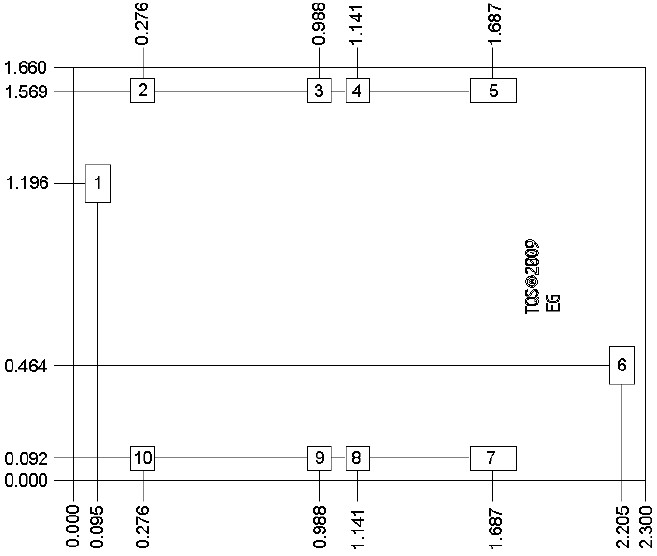

机械图样Mechanical Drawing
TGA4538 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4538:S 参数
TGA4538 数据资料DataSheet下载:PDF Rev.V2 2 页
