TGA4807 10.7 Gb/s 调制驱动放大器
The TriQuint TGA4807 is a medium power wideband AGC amplifier MMIC die that is part of a series of optical driver amplifiers suitable for a variety of driver applications. The part typically provides 19 dB small signal gain with 19 dB AGC range. RF ports are DC coupled enabling the user to customize system corner frequencies. The TGA4807 is an excellent choice for applications requiring high drive levels. The TGA4807 has demonstrated the capability to amplify a 2 V input signal to 11 Vpp saturated. The TGA4807 requires off-chip decoupling, a DC block and a bias tee. The TGA4807 is available in die form and is lead-free and RoHS compliant.
技术特性
- Single-ended input / output
- Small signal gain: 19 dB
- Small signal bandwidth: 10 GHz
- Wide drive range (3V to 11V)
- 25 ps edge rates (20/80)
- Power dissipation: 2.25 Watts
- Die size: 3.3 x 2 x 0.1 mm
应用领域 APPLICATION
- Mach-Zehnder Modulator Drivers
- Metro and Long Haul Optical Networks
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| DC-10 |
25 |
19 |
- |
7 |
250 |
订购信息 Ordering Information

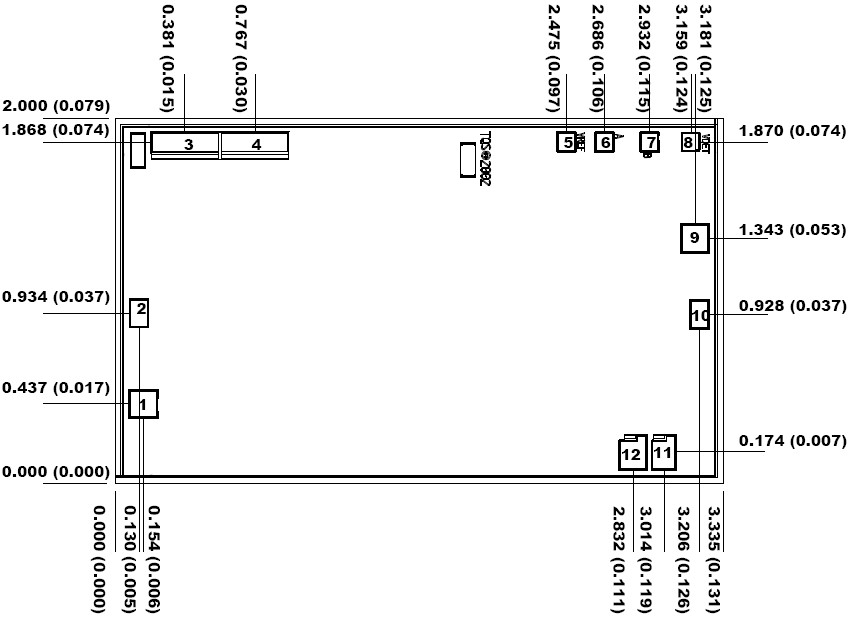

机械图样Mechanical Drawing
 |
