TGA4905-CP 4W Ka 波段封装放大器
The TriQuint TGA4905-CP is a compact 4 Watt packaged high power amplifier MMIC for Ka band applications. The part is designed using TriQuint's proven standard 0.25 um gate power pHEMT production process. The TGA4905 provides a nominal 36 dBm of output power at an input power level of 18 dBm from 25 to 31 GHz with a small signal gain of 22 dB. The part is ideally suited for low cost emerging markets such as base station transmitters for satellite ground terminals, point-to-point radio and LMDS. The TGA4905-CP is 100% RF tested to ensure performance compliance.
技术特性
- 36 dBm VSAT band Psat
- 22 dB nominal gain
- 25 to 31 GHz frequency range
- 0.25um pHEMT technology
- Bias conditions: 6 V, 2.1 A (quiescent) up to 4 A under RF drive
- Package dimensions: 13.34 x 9.65 x 1.85 mm (0.525 x 0.380 x 0.073 in)
订购信息 Ordering Information
TGA4905-CP 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 25-31 |
26 |
22 |
- |
6 |
2100 |
应用领域 APPLICATION
- Point-to-Point Radio
- Satellite Ground Terminals

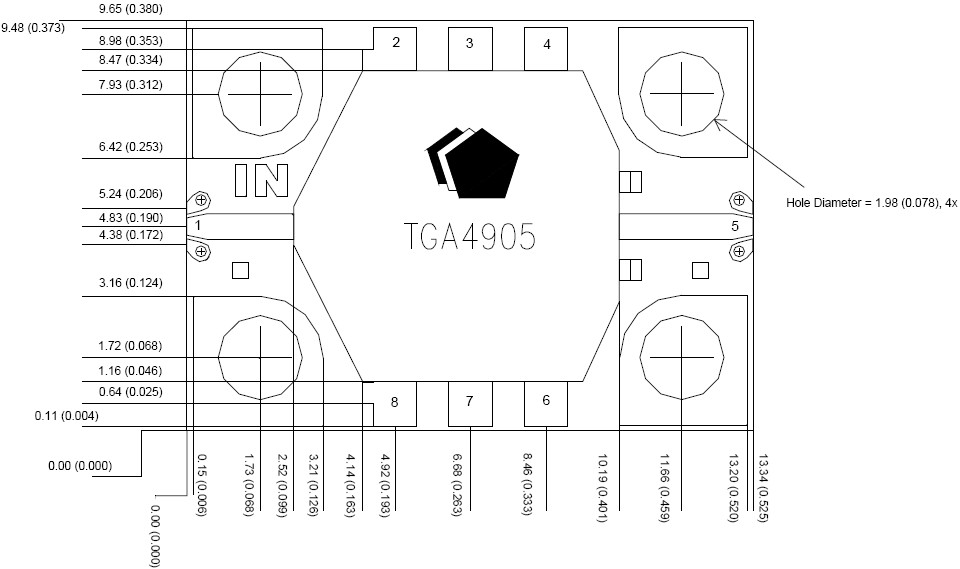

机械图样Mechanical Drawing
 |
