TGA4906 4W Ka-波段HPA
The TriQuint TGA4906 is a compact 4 Watt high power amplifier for Ka band applications. The part is designed using TriQuint's proven standard 0.15 um gate power pHEMT production process. The TGA4906 provides a nominal 36 dBm of output power at an input power level of 14 dBm with a small signal gain of 24 dB. The part is ideally suited for low cost emerging markets such as base station transmitters for satellite ground terminals and point-to-point radio.
技术特性
- Frequency range: 28 to 31 GHz
- 36 dBm nominal Psat
- Gain: 24 dB
- Return loss: -8 dB
- Bias: Vd = 6 V, Idq = 1.6 A, Vg = -0.75 V typical
- Technology: 3MI 0.15 um Power pHEMT
- Chip dimensions: 2.98 x 2.90 x 0.05 mm
应用领域 APPLICATION
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 28-31 |
36 |
24 |
- |
6 |
1600 |

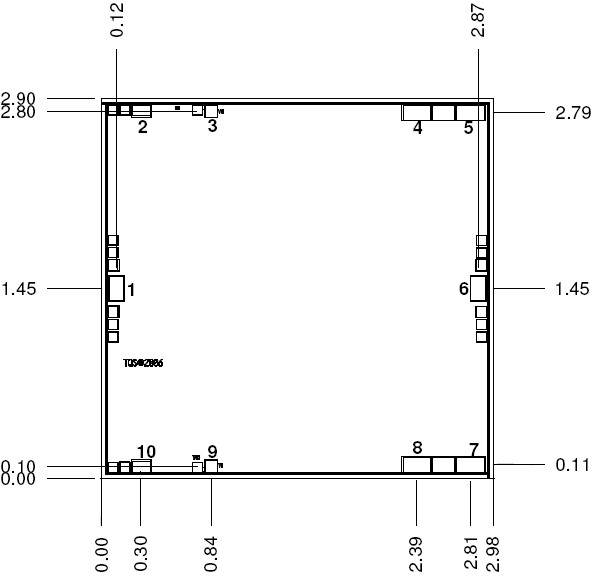

机械图样Mechanical Drawing
 |
