TGA4947-SL 双通道 40 Gb/s 和 100 Gb/s 调制器驱动器

The TriQuint TGA4947-SL is a dual channel optical modulator driver amplifier designed to operate at frequencies that target both the 40 and 100 Gb/s optical markets using a 16 x 10.5 x 3.6 mm surface mount system in package (SIP). The TGA4947-SL consists of two channels of three high performance wideband amplifiers and integrated broadband bias tees assembled in a surface mount package, requiring a minimum of off-chip components. A single TGA4947-SL placed between the MUX and Optical Modulator provides OEMs with a modulator driver surface mount solution. The TGA4947-SL provides Metro and Long Haul designers with system critical features such as: low power dissipation, high signal to noise ratio (SNR), high voltage drive capability (3 Vpp amplitude adjustable up to 9 Vpp), fast rise and fall times, low output jitter, and low input drive sensitivity (0.4 Vpp – 1 Vpp at Vout = 8Vpp).

技术特性
  • 40 & 100 Gb/s Performance
  • Dual channel, Single-ended input andoutput
  • Integrated broadband bias tees
  • Adjustable output amplitude, 3 Vpp – 9 Vpp
  • Channel / Channel Isolation, 30 dB to 40 GHz
  • Low additive RMS jitter, 600 fsec
  • High output drive, 8Vpp with 0.4 Vpp Input
  • Gain, 30 dB at 20 GHz
  • Low DC power dissipation, 2.4 W total for Vout = 6 Vpp at Vd=5 V
  • Rise and fall times, 10.5 psec
  • Hot pluggable
  • Package size: 16 x 10.5 x 3.6 mm
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
DC - 40 - 30 - 5 1.2W / 通道
应用领域 APPLICATION
  • 40 Gb/s Optical Networks
  • 100 Gb/s Optical Networks
订购信息 Ordering Information
TGA4947-SL 5A991.b  Dual Channel 40 &100Gb/s Modulator Driver

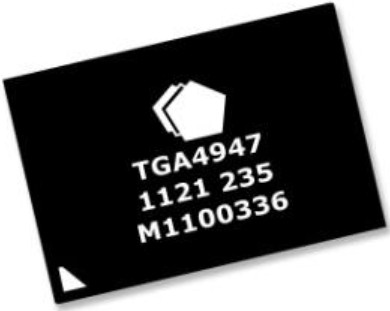

TGA4947-SL 产品实物图

TGA4947-SL 产品实物图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4947-SL 数据资料DataSheet下载:PDF Rev.V2 2 页
