TGA8300-SCC 增益模块放大器
The TriQuint TGA8300-SCC is a GaAs monolithic distributed amplifier designed for use as a multioctave general-purpose gain block. Four 189 um gate-width FETs provide 7.5 dB nominal gain and 5.5 dB noise figure from 2 to 18 GHz. Typical power output is 20 dBm at 1 dB gain compression. Typical input and output SWRs are 1.5:1. Ground is provided to the circuitry through vias to the backside metallization. The TGA8300-SCC is supplied in chip form and is engineered for high-volume automated assembly. All metal surfaces are gold-plated to be compatible with thermocompression and thermosonic wire bonding processes.
技术特性
- 2 to 18 GHz frequency range
- 20 dBm typical output power at 1 dB gain compression
- 7.5 dB typical gain
- Input / output SWR: 1.5:1
- On-chip blocking capacitor allows easy cascading
- Dimensions: 2.362 x 1.625 x 0.152 mm (0.093 x 0.064 x 0.006 in)
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 2.0-18 |
20 |
7.5 |
5.5dB |
6 |
100 |

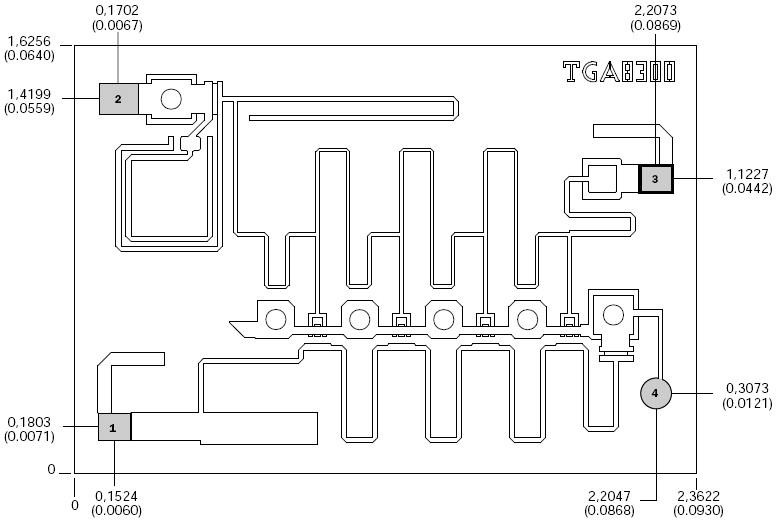

机械图样Mechanical Drawing
 |
