TGA8659-FL 高功率放大器, 凸缘架封装

The TriQuint TGA8569-FL is a packaged power amplifier delivering more than 4 Watts in the VSAT band. The power amplifier works over the extended frequency range of 13 to 17 GHz and is designed using TriQuint's proven standard 0.5 um gate pHEMT production process. The part provides a nominal gain greater than 25 dB with excellent input and output VSWR. The amplifier is designed for Ku band VSAT transmitters and can also provide high power over a wider frequency band. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.

技术特性

Frequency range: 13 to 15 GHz
>25 dB nominal gain
>36 dBm nominal Psat
Bias 6 to 7.5V @ 1.3 to 1.6 A Idq
Package dimensions: 8.4 x 17.8 x 3.0 mm (0.33 x 0.70 x 0.12 in)

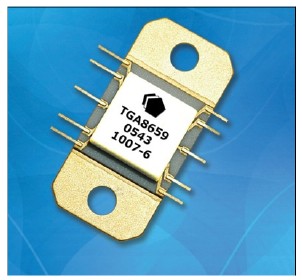

TGA8659-FL 产品实物图

技术指标

频率(GHz)	功率(dBm)	增益(dB)	NF/PAE	+V	IQ(mA)
13-15	36	25	-	7	1300

订购信息 Ordering Information

TGA8659-FL

应用领域 APPLICATION

Ku Band VSAT Transmitters
Point-to-Point Radio

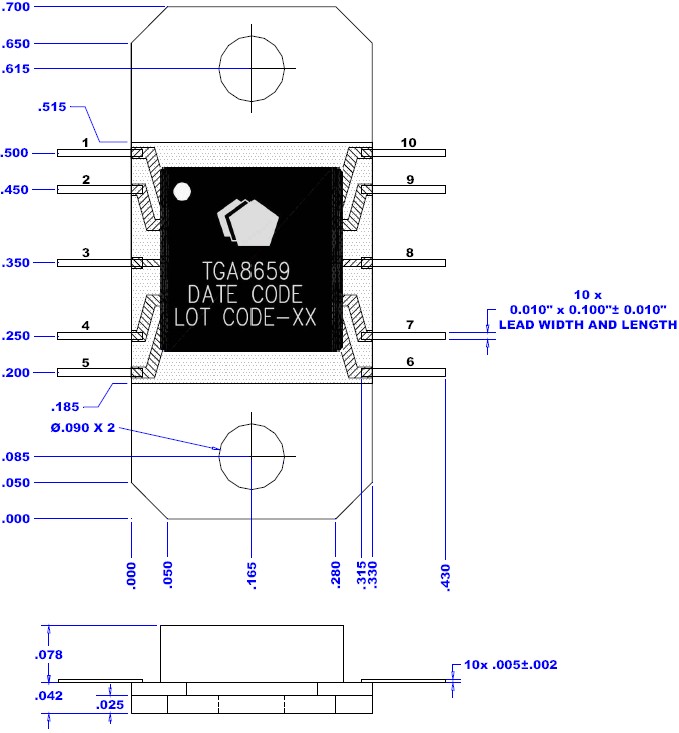

机械图样Mechanical Drawing

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TGA8659-FL:S 参数
TGA8659-FL材料清单 :xls
TGA8659-FL布局文件
TGA8659-FL 数据资料DataSheet下载:pdf	Rev.V2	2 页
