TGA8810-SCC 增益模块, SB

The TriQuint TGA8810-SCC is a self-biased general purpose amplifier. Two gain stages employ shunt feedback to produce flat gain to 10 GHz. Output power at 1 dB gain compression is typically 17 dBm and noise figure is 6 dB. The TGA8810-SCC uses on-chip DC blocks to allow direct cascading. Three different on-chip self-bias resistors provide the flexibility of selecting bias current and RF performance. The TGA8810-SCC is available in chip form and is readily assembled using automated equipment. Bond pad and backside metallization is gold plated for compatibility with eutectic alloy attachment methods as well as the thermocompression and thermosonic wire bonding processes.

技术特性
  • 2 to 10 GHz frequency range
  • Operates from single 5 V supply
  • Unconditionally stable
  • 17 dB typical gain
  • Typical ± 0.6 dB gain flatness
  • 1.8796 x 1.6510 x 0.1524 mm (0.074 x 0.065 x 0.006 in)
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
2.0 - 10 17 17 6 dB 5 90
订购信息 Ordering Information
  • TGA8810-SCC

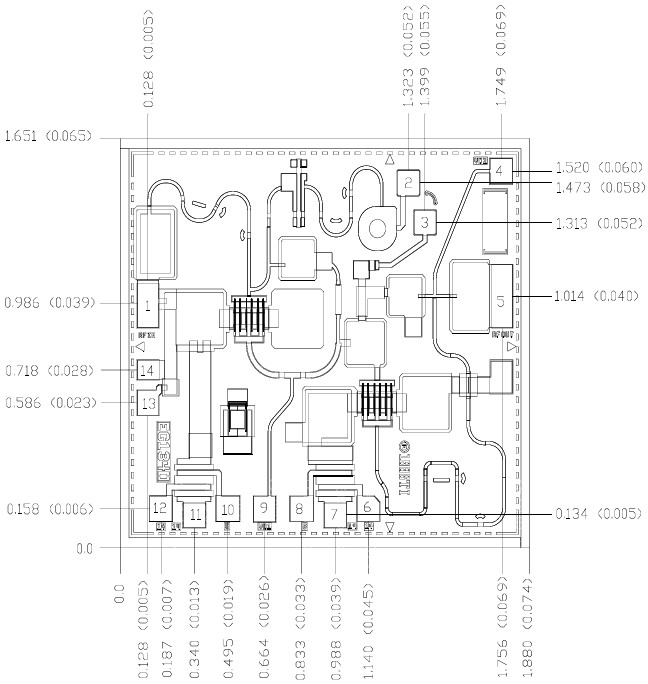

机械特性Mechanical Characteristics
TGA8810-SCC 机械特性
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA8810-SCC:S 参数
TGA8810-SCC 数据资料DataSheet下载:PDF Rev.V2 2 页
