TGF2022-24 Ku-波段分立功率pHEMT
The TriQuint TGF2022-24 is a discrete 2.4 mm pHEMT which operates from DC to 20 GHz. The part is designed using TriQuint's proven standard 0.35um power pHEMT production process. The TGF2022-24 typically provides greater than 34 dBm of saturated output power with power gain of 13 dB. The maximum power added efficiency is 58% which makes the TGF2022-24 appropriate for high efficiency applications. The TGF2022-24 is also ideally suited for point-to-point radio, high-reliability space and military applications. The part is lead-free and RoHS compliant and has a protective surface passivation layer providing environmental robustness.
技术特性
- Frequency range: DC to 20 GHz
- > 34 dBm nominal Psat
- 58% maximum PAE
- 42 dBm nominal OIP3
- 13 dB nominal power gain
- Suitable for high reliability applications
- 2.4 mm x 0.35 um Power pHEMT
- Nominal bias Vd = 8 to 12 V, Idq = 180 to 300 mA (under RF drive, Id rises from 180 mA to 600 mA)
- Chip dimensions: 0.57 x 1.30 x 0.10 mm (0.022 x 0.051 x 0.004 in)
订购信息 Ordering Information
技术指标
| 频率(GHz) |
增益(dB) |
功率(dBm) |
NF/PAE |
Vd(V) |
IQ(mA) |
| DC - 20 |
13 |
> 34 |
58% |
8 - 12 |
180 - 300 |
|
应用领域 APPLICATION
- Base Stations
- Broadband Wireless
- High Reliability Space
- Military
- Point-to-Point Radio

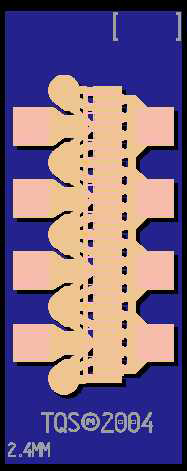

机械图样Mechanical Drawing
 |
