技术特性

• 0.5 um gate finger length
• Nominal Pout of 6.0 Watts at 2.3 GHz
• Nominal PAE of 54.5% at 2.3 GHz
• Nominal gain of 12.7 dB at 2.3 GHz
• Die size: 33.0 x 71.0 x 4.0 mils (0.8330 x 1.804 x 0.1016 mm)

技术指标

订购信息 Ordering Information

• TGF4112

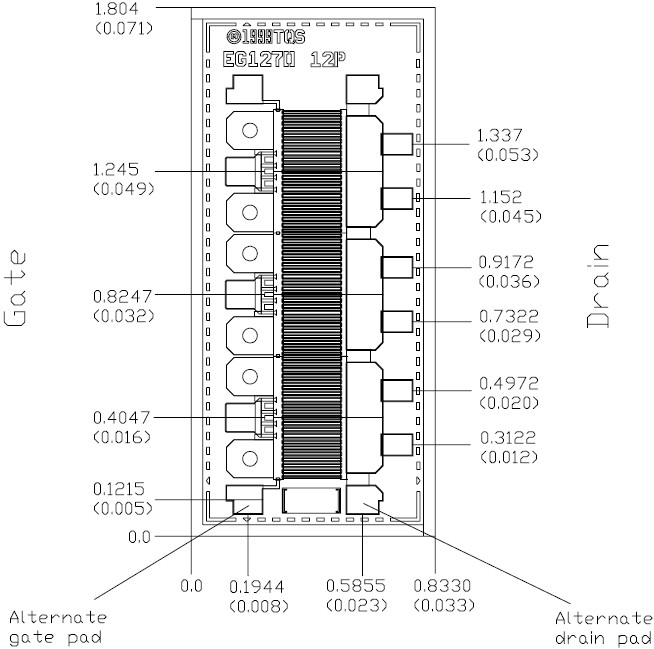

机械图样Mechanical Drawin
