技术特性

• 0.5 um gate finger length
• Nominal Pout of 12 Watts at 2.3 GHz
• Nominal PAE of 51.5% at 2.3 GHz
• Nominal gain of 10.8 dB at 2.3 GHz
• Die size: 36.0 x 81.0 x 4.0 mils (0.914 x 2.057 x 0.102 mm)

技术指标

订购信息 Ordering Information

• TGF4124

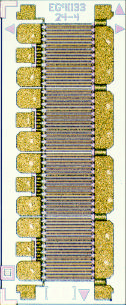

机械图样Mechanical Drawin
