TGL2201-SM 宽带双级 VPIN 限幅器

The TriQuint TGL2201-SM is a packaged dual stage GaAs VPIN limiter that operates over the 2 to 12 GHz band. Vertical PIN diodes provide the limiting action at high input signal levels and low loss at small signals. The TGL2201-SM is suitable for a variety of wideband systems such as low noise amplifier (LNA) / receiver protection in radars, phased arrays and jammers. The part is lead-free and RoHS compliant.

技术特性
  • 2 to 12 GHz passive, high isolation limiter
  • Low loss < 1.0 dB, X band
  • Return loss > 10 dB
  • Flat leakage < 18 dBm
  • Input power CW survivability up to 5 W
  • Integrated DC nlock on both input and output
  • Package dimensions: 3.0 x 3.0 x 1.35 mm
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V
2 - 12 < 1.0 - - Passive
功能框图 Functional Block Diagram

TGL2201-SM 功能框图

应用领域 APPLICATION
  • Jammers
  • LNA Receiver Chain Protection
  • Military Radar Systems
  • Phased Arrays
订购信息 Ordering Information
TGL2201-SM  EAR99  Wideband VPIN Limiter
TGL2201-SM T/R  Wideband VPIN Limiter T/R

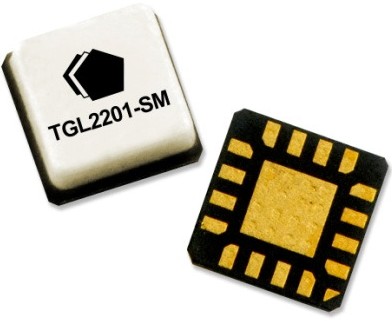

TGL2201-SM 产品实物图

TGL2201-SM 产品实物图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGL2201-SM:S 参数
TGL2201-SM材料清单 :xls
TGL2201-SM布局文件
TGL2201-SM 数据资料DataSheet下载:pdf Rev.V2 2 页
