TGP1439 移相器
The TriQuint TGP1439 is a 5-bit digital phase shifter MMIC using TriQuint?'s proven 0.5 OhmpPower pHEMT process to support a variety of K band phased array applications including satellite communication systems. The 5-bit design utilizes a compact topology that achieves a 1.27 mm² die area, high performance and good tolerance to control voltage variation. The part provides a 5-bit digital phase shift function with a nominal -5 dB insertion loss and 3° RMS phase shift error over a bandwidth of 18 to 20 GHz. This device requires a minimum of off-chip components and operates with a -5.0 V to -2.5 V control voltage range. Each device is RF tested on-wafer to ensure performance compliance. The device is available in chip form.
技术特性
- 0.5 um pHEMT technology
- 18 to 20 GHz frequency range
- 3º typical RMS phase shift error
- -5 dB typical insertion loss
- Control voltage: -2.5 to -5.0 V
- Compact 1.27 mm² die area
应用领域 APPLICATION
- Phased Arrays
- Satellite Communications (Satcom)
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
插入损耗(dB) |
+V |
| 18 - 20 |
5 |
-2.5 |

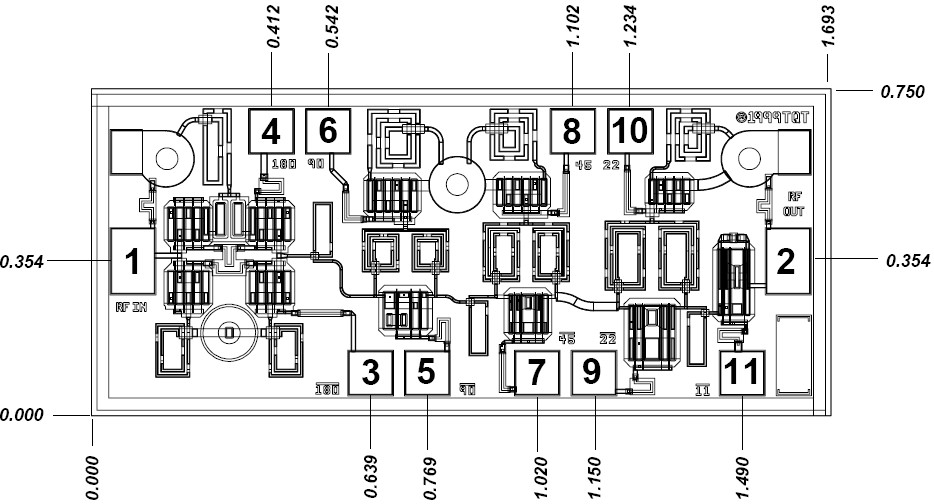

机械特性Mechanical Characteristics
 |
