TGS2303 SP3T VPIN

技术特性

Vertical PIN monolithic process
0.2 to 18 GHz frequency range
0.5 dB insertion loss, typical
35 dB isolation, typical
20 dB typical input and output return loss
Compatible with fully automated assembly
Series-shunt-shunt configuration

技术指标

频率(GHz)	插入损耗(dB)	ISO(dB)	P1dB(dBm)	+V	IQ(mA)
0.2 - 20	0.5	35	-	-	10/Arm

订购信息 Ordering Information

TGS2303

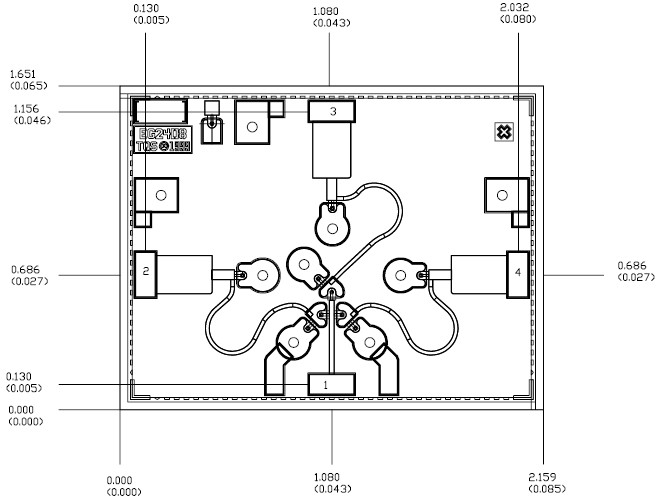

机械图样Mechanical Drawing

TGS2303 机械图样

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TGS2303 数据资料DataSheet下载：PDF	Rev.V2	2 页
