TGS2351 DC - 6GHz 高功率GaN SPDT 开关
The TriQuint TGS2351 is a single-pole, double-throw (SPDT) switch. It operates from DC to 6 GHz and is designed using TriQuint's 0.25um GaN on SiC production process. The device typically provides up to 40 W input power handling at control voltages of 0 / -40 V. This switch maintains low insertion loss of < 0.8 dB and high isolation of -40 dB typical. The TGS2351 is ideally suited for high power switching applications. The part is lead-free and RoHS compliant.
技术特性
- Frequency range: DC to 6 GHz
- Power handling: up to 40 W
- Insertion loss: < 0.8 dB
- Isolation: -40 dB typical
- Switching speed: < 35 ns
- Control voltages: 0 V / -40 V from either side of MMIC
- Dimensions: 1.15 x 1.65 x 0.1 mm

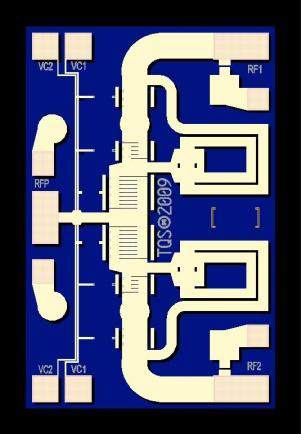

机械图样Mechanical Drawing
 |
订购信息 Ordering Information
技术指标
| 频率(GHz) |
插入损耗(dB) |
ISO(dB) |
P1dB(dBm) |
+V |
IQ(mA) |
| DC - 6 |
0.8 |
-40 |
>46 |
0 / -40 |
<1 |
应用领域 APPLICATION

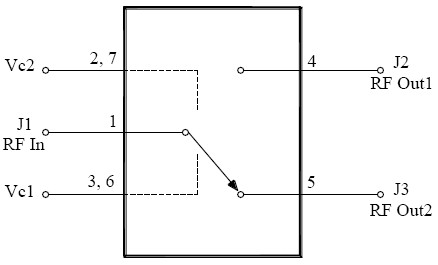

功能框图 Functional Block Diagram
|
