TGS4304 高功率Ka波段吸收式SPDT开关
The TriQuint TGS4304 is a GaAs absorptive single-pole, double-throw (SPDT) PIN monolithic switch designed to operate over the Ka band frequency range. This switch maintains a low insertion loss with high power handling of 33 dBm or greater input P1dB at VC = +10 V. These advantages, along with the small size of the chip, make the TGS4304 ideal for use in communication and transmit / receive applications. The TGS4304 is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.
技术特性
- 32 to 40 GHz frequency range
- > 33 dBm Input P1dB @ VC = +10V
- On-chip biasing resistors
- On-chip DC blocks
- < 1.0 dB midband insertion loss
- < 4 ns switching speed
- VPIN technology
- Chip dimensions: 1.58 x 1.10 x 0.10 mm (0.043 x 0.062 x 0.004 in)
技术指标
| 频率(GHz) |
插入损耗(dB) |
ISO(dB) |
P1dB(dBm) |
+V |
IQ(mA) |
| 32 - 40 |
0.9 |
35 |
>33 |
+5/-5 |
30 |
订购信息 Ordering Information
|
应用领域 APPLICATION
- Ka Band Satellite Communications (Satcom)
- Point-to-Multipoint Radio
- Point-to-Point Radio

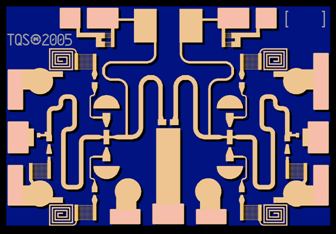

机械图样Mechanical Drawing
 |
