TGV2204-FC 19GHz VCO，预分频器
The TriQuint TGV2204-FC is a flip-chip voltage controlled oscillator (VCO) designed to operate at frequencies that target the automotive radar market. The TGV2204-FC is designed using TriQuint's proven HBT3 process and front-side Cu / Sn pillar technology for simplified assembly and low interconnect inductance. The TGV2204-FC is a VCO that typically provides 7 dBm output power at 19 GHz with < -105 dBc/Hz phase noise at 1 MHz offset. The integrated divide-by-8 prescaler eases PLL design. The TGV2204-FC is an excellent choice for applications requiring frequency stability in transmit chain architectures. The The part is lead-free and RoHS compliant and has a protective surface passivation layer providing environmental robustness.
技术特性
- Frequency range: 18.5 to 19.5 GHz
- Output power: 7 dBm @ 19 GHz
- Phase noise: -105 dBc/Hz at 1 MHz offset, fc = 19 GHz
- Prescaler output frequency range: 2.31 to 2.44 GHz
- Prescaler output power: -6 dBm
- Bias: Vcc = 5 V, Itotal = 165 mA typical
- Technology: HBT3
- Chip dimensions: 1.28 x 1.71 x 0.38 mm
应用领域 APPLICATION
- 77 GHz Long/Medium Range Automotive Radar
- Adaptive Cruise Control
- Pre-Crash Warning / Collision Avoidance Systems
|
技术指标
| 频率(GHz) |
功率(dBm) |
相位噪声(dBc/Hz) |
+V |
IQ(mA) |
| 18.5 - 19.5 |
7 |
-105(1MHz) |
5 |
158 |
订购信息 Ordering Information

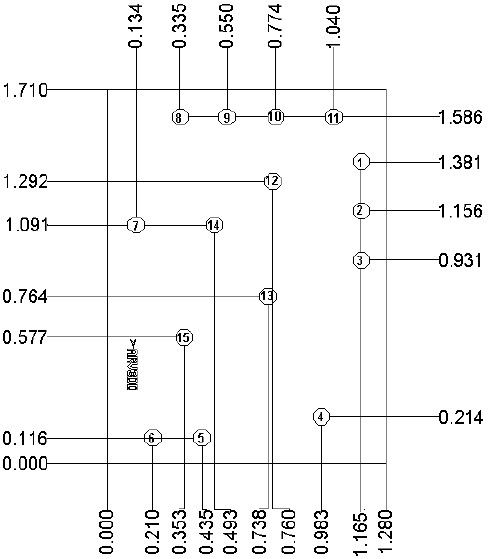

机械图样Mechanical Drawing
 |
