TQM666022 WCDMA/HSPDA功率放大器-双工模块; SE 输入w/耦合器, 检波器

The TriQuint TQM666022, a member of the Tritium IIIâ„¢ product familiy, is an integrated 3 V linear power amplifier, duplexer and transmit filter module. It includes a highly accurate output power detector designed for mobile UMTS handset applications, supporting HSUPA operation with transmission data rates up to 10 Mb/s. It features two output power modes, additional continuous bias in low power mode, low off and standby currents and a separate pin for module enable. RF input and output matching is included within the module; therefore, minimal external circuitry is required. The TQM666022 provides excellent RF performance with low current consumption resulting in longer talk times in portable applications. The tiny 7 x 4 x 1.1 mm surface mount package is ideal for new generation slim, small and light phones.

技术特性
  • Handset Tritium III PAD™ (power amplifier / duplexer) module for UMTS Band II
  • Specified for HSDPA modulation (HSUPA capable)
  • Integrates power amplifier, highly accurate output power detector, transmit filter and duplexer
  • No regulated voltage required
  • Separate ‘module enable’ pin
  • All RF ports matched to 50 Ohm
  • Low current consumption:
    • 2 power modes
    • Continuous bias in low power mode
    • Extremely low idle current (15 mA typical) in low power mode
  • Compatible for low collector voltage operation with DC-DC-converters
应用领域 APPLICATION
  • 3G UMTS Handsets and Data Cards
技术指标
尺寸 频段 特点
7.0 x 4.0 x 1.1 Band 2 1-Bit (Hi / Lo Power Modes)
订购信息 Ordering Information
  • TQM666022

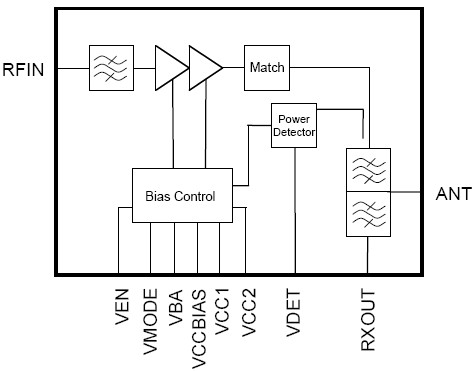

功能框图 Functional Block Diagram

TQM666022 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM666022 数据资料DataSheet下载:PDF Rev.V2 2 页
