TQM716015 带双工器的CDMA & WCDMA / HSUPA 功率放大器模块

The TQM716015 is fully matched Power Amplifier Module designed for use in CDMA (BC0), WCDMA (Bands 5&6) and LTE handsets. Its compact 3x3mm package including a coupler and built-in voltage regulator makes it ideal for today’s extremely small data enabled phones. Its RF performance meets the stringent linearity requirements for multi-mode operation. The TQM716015 is designed on TriQuint’s GaAs BiHEMT technology with CuFlip® assembly offering state of the art reliability, temperature stability and ruggedness. The 3-Gain state PA die operates in LPM, MPM and HPM to maximize talk time over the entire range of operating conditions. To simplify the cost/time of calibration while in production the TQM716015 can be used in 1-bit operation; either LPM/HPM with only 3.5mA of IcQ up to +13dBm in LPM, or MPM/HPM with 11mA of IcQ up to +17dBm in MPM.

技术特性
  • GaAs BiHEMT / CuFlip® PA Technology
  • Typical Quiescent Current values: LPM: 3.5 mA MPM: 11 mA HPM: 80 mA
  • Excellent Linearity in all modes
  • Excellent Phase Discontinuity
  • Integrated high performance coupler
  • Built-in voltage regulator functionality eliminating any external switch circuitry
  • Small 10-pin, 3x3mm module
  • Lead-free 260°C / RoHS / Halogen-free
  • Full ESD protection
订购信息 Ordering Information
  • TQM716015
技术指标
尺寸 频段 特点
3.0 x 3.0 x 0.9 Cellular / Band 5 2-Bit (Hi / Med / Lo Power Modes)
应用领域 APPLICATION
  • WCDMA B5 Applications
  • CDMA2000 Cellular (BC0) Applications
  • HSDPA/HSUPA/HSPA+ Applications
  • LTE-Compatible Applications

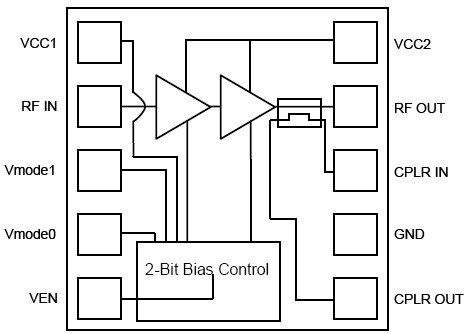

功能框图 Functional Block Diagram

TQM716015 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM716015 数据资料DataSheet下载:pdf Rev.V2 2 页
