TQM756014 带双工器的CDMA & WCDMA / HSUPA 功率放大器模块
The TQM756014 is fully matched Power Amplifier Module designed for use in CDMA BC15 (AWS), WCDMA (Bands 4) and LTE handsets. Its compact 3x3mm package including a coupler and built-in voltage regulator makes it ideal for today’s extremely small data enabled phones. Its RF performance meets the stringent linearity requirements for multi-mode operation. The TQM756014 is designed on TriQuint’s GaAs BiHEMT technology with CuFlip® assembly offering state of the art reliability, temperature stability and ruggedness. The 3-Gain state PA die operates in LPM, MPM and HPM to maximize talk time over the entire range of operating conditions. To simplify the cost/time of calibration while in production the TQM776011 can be used in 1-bit operation; either LPM/HPM with only 4mA of IcQ up to +13dBm in LPM, or MPM/HPM with 9mA of IcQ up to +17dBm in MPM.
技术特性
- GaAs BiHEMT / CuFlip® PA Technology
- Typical Quiescent Current values: LPM: 4 mA MPM: 9 mA HPM: 90 mA
- Excellent Linearity in all modes
- Integrated high performance coupler
- Excellent Phase Discontinuity
- Built-in voltage regulator functionality eliminating any external switch circuitry
- Small 10-pin, 3x3mm module
- Lead-free 260°C / RoHS / Halogen-free
- Full ESD protection
订购信息 Ordering Information
技术指标
| 尺寸 |
频段 |
特点 |
| 3.0 x 3.0 x 0.9 |
AWS / Band 4 |
2-Bit (Hi / Med / Lo Power Modes) |
|
应用领域 APPLICATION
- WCDMA B4 Handsets
- CDMA2000 BC15 (AWS) Applications
- HSUPA, HSDPA, HSPA+ Applications
- LTE-Compatible Applications

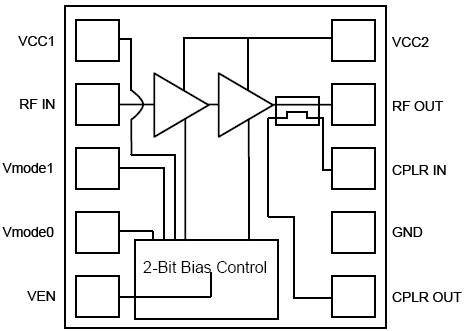

功能框图 Functional Block Diagram
|
