TQM7M5005H 四波段GSM/GPRS/EDGE-线性功率放大器模块
The TriQuint TQM7M5005H is an extremely small (5 x 5 x 1 mm) multi-mode power amplifier module for GSM / EDGE applications. This module has been optimized for high EDGE efficiency and EDGE power class E2 operation while maintaining high GSM / GPRS efficiency. The module incorporates two highly integrated InGaP power amplifier die with a CMOS controller. The CMOS controller implements a fully integrated closed-loop power control within the module for GSM operation. This eliminates the need for any external couplers, power detectors, current sensing or other components to assure the output power level. The latter is set directly from the Vramp input from the DAC. The module has Tx enable, band select, mode (EDGE or GSM) inputs. The module construction is a low-profile over-molded land-grid array on a halogen-free laminate.
技术特性
- Very compact size - 5 x 5 x 1.0 mm
- High GSM efficiency - GSM 850 55%, GSM900 55%, DCS 49%, PCS 49%
- High EDGE efficiency - GSM 850 22%, GSM 900 22%, DCS 25%, PCS 24%
- Positive supply voltage - 3.0 to 4.5 V
- 50 Ohm input and output impedances
- GPRS Class 12
- CMOS band select and internal closed-loop power control for GSM operation
- High-reliability InGaP technology
- Ruggedness 10:1
- No external Vref required
订购信息 Ordering Information
|
应用领域 APPLICATION
- GSM / EDGE Handsets
- GSM / EDGE Wireless Cards and Data Links
技术指标
| 尺寸(mm) |
频段 |
特点 |
| 5.0 x 5.0 x 1.0 |
GSM850/900, DCS/PCS |
Low Band lbatt < 1.5A @ Pcal with PAE 55% |

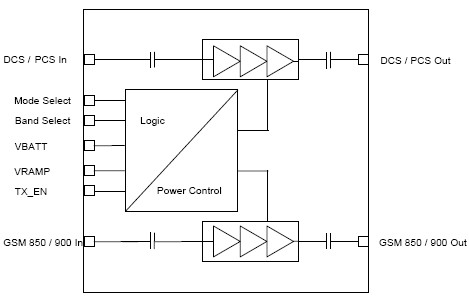

功能框图 Functional Block Diagram
|
