TQM8M9074 可变增益放大器

The TriQuint TQM8M9074 is a high dynamic range analog controlled variable gain amplifier (VGA) which operates from 0.7 to 2.8 GHz. The VGA is able to achieve high performance with +43 dBm OIP3 and +27.5 dBm P1dB over a wide gain variation range while only consuming 225 mA current. The part integrates a high linearity, low noise amplifier for the first stage, followed by a broadband voltage variable attenuator and then with a high performance 0.5 Watt P1dB amplifier. The input and output of the various individual stages are accessible with external pins to allow for optimization of performance at any sub-band across the VGA's 0.7 to 2.8 GHz operating frequency range. The TQM8M9074 is packaged in a RoHS compliant, compact 5 x 5 mm surface mount leadless package. Superior thermal design allows the product to have a minimum MTTF rating of 1000 years at a mounting temperature of +85º C. The TQM8M9074 is targeted for use in wireless infrastructure where high linearity, medium power and high efficiency are required.

技术特性
  • Integrates amplifier + voltage variable attenuator + amplifier functionality
  • 700 to 2800 MHz
  • 23 dB Gain @ 2.14 GHz
  • 3.4 dB noise figure @ max gain setting
  • +27.5 dBm P1dB
  • +43 dBm OIP3
  • +5 V supply voltage
  • 240 mA quiescent current
  • MTTF > 1000 years

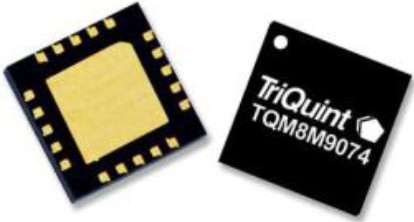

TQM8M9074 产品实物图

TQM8M9074 产品实物图

应用领域 APPLICATION
  • 3G / 4G Wireless Infrastructure
  • General Purpose Wireless
  • LTE / WCDMA / EDGE / CDMA
  • Repeaters
技术指标
频率(GHz) 衰减幅度 (dB) 增益 (dB) P1dB (dBm) OIP3 (dBm) NF (dBm) Idd (mA) Vdd (V) 封装
0.7 - 2.8 30 23.2 27.5 43 3.4 240 5 5 x 5 mm
订购信息 Ordering Information
TQM8M9074 ½W Variable Gain Amplifier
TQM8M9074-PCB2140  2140 MHz Eval Board

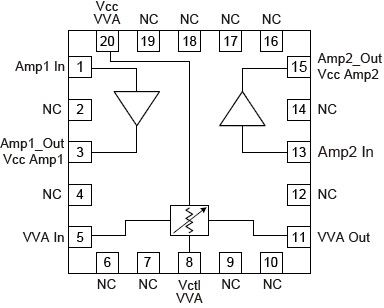

功能框图 Functional Block Diagram

TQM8M9074 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM8M9074:封装信息
TQM8M9074材料清单
TQM8M9074布局文件
TQM8M9074:S-参数 - TQM8M9074_AMP1
TQM8M9074:S-参数 - TQM8M9074_AMP2
TQM8M9074:S-参数 - TQM8M9074_VVA_0_Atten
TQM8M9074 数据资料DataSheet下载:PDF Rev.V2 2 页
