TQP3M6004 700 - 915 MHz 高 IP3 双 PHEMT 低噪声放大器

The TriQuint TQP3M6004 is a packaged low noise dual pHEMT discrete device operating from 700 to 915 MHz. This broadband device is useful in a number of different applications and is particularly well suited for cellular or WiMAX base station or tower-mounted amplifier products. The part consists of a single monolithic GaAs die mounted in a small 4 x 4 QFN package. This discrete dual LNA device is intended to be used as a balanced pair in wireless network applications.

技术特性
  • 0.32 dB noise figure
  • 20.7 dB gain
  • 12.5 dBm IIP3
  • 20 dBm P1dB
  • 4 x 4 mm package
  • RoHS compliant, lead-free
TQP3M6004 产品实物图

TQP3M6004 产品实物图

应用领域 APPLICATION
  • Base Station Receivers
  • Tower-Mounted Amplifiers
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
0.7 - 0.915 20.7 20.7 0.32 4 70
订购信息 Ordering Information
  • TQP3M6004

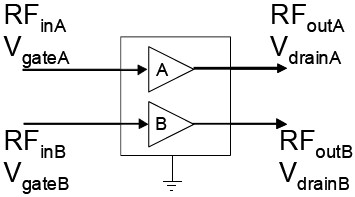

功能框图 Functional Block Diagram

TQP3M6004 功能框图



应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQP3M6004 数据资料DataSheet下载:pdf Rev.V2 2 页
